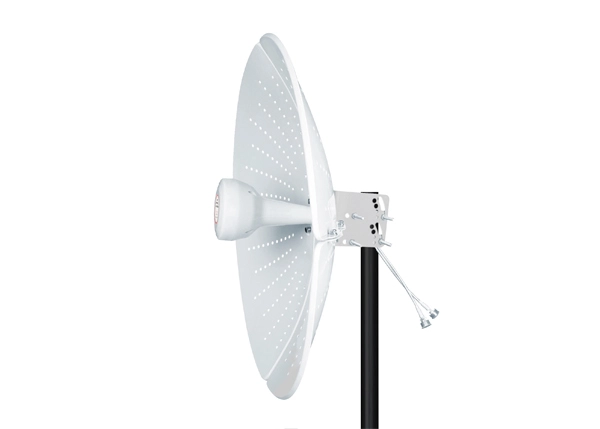

The AN-Q26 Dish Hyperbolic Antenna is a high-performance 5G full-band directional antenna designed for long-range outdoor applications. Operating across 1710–4200 MHz, it delivers an exceptional 22 dBi gain with a focused 16° (H) × 12° (E) beamwidth, ideal for enhancing signal strength in remote, mountainous, or suburban areas. Its hyperbolic dish design ensures superior front-to-back ratio (25 dB) and low VSWR (<2.0), minimizing signal loss. Built with aluminum alloy, this lightweight (3 kg) yet rugged antenna withstands 60 m/s winds and harsh weather. Compatible with N-type connectors, it supports 100W max power and is perfect for 4G/5G CPE, fixed wireless access, and backhaul links.
ELECTRICAL | |
Model | AN-Q26 |
Frequency Range | 1710-4200-MHz |
Bandwidth | 2490-MHz |
Gain | 22-dBi |
Beamwidth | H：16°E：12° |
F/B Ratio | 25-dB |
VSWR | ≤2.0 |
Polarization | Vertical or Horizontal |
Max power | 100 -W |
Nominal Impedance | 50 -Ω |
MECHANICAL | |
Connector | N female or customized |
Antenna Dimension | 0.6-M |
Weight | 3-Kg |
Material | Aluminum Alloy |
Rated Wind Velocity | 60-m/s |
Wide Frequency Range: Covers 1710–4200 MHz (4G/5G bands) with 2490 MHz bandwidth.
High Gain & Precision: 22 dBi gain and narrow beamwidth for targeted, interference-free signals.
Durable Construction: Aluminum alloy reflector with through-hole design reduces wind resistance (60 m/s rated).
Low Signal Loss: VSWR ≤2.0 and 50Ω impedance ensure efficient power transfer.
Easy Deployment: Compact 0.6m diameter and 3 kg weight for easy installation.
Versatile Polarization: Supports vertical/horizontal polarization for flexible alignment.
High Power Handling: 100W max power for robust performance in demanding environments.
