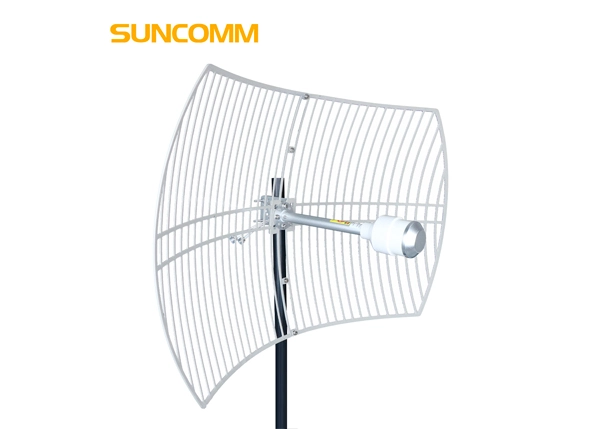

The AN-Q28 Grid Parabolic Antenna is a high-performance 5G full-band directional antenna designed for long-range signal enhancement in challenging environments. Operating across 1710–3800 MHz, it delivers an exceptional 24 dBi gain with a focused 12° (H) × 16° (E) beamwidth, ideal for applications requiring clear line-of-sight to signal sources like towers. Its grid parabolic design ensures superior front-to-back ratio (25 dB) and low VSWR (≤2.0), minimizing signal loss. Built with aluminum alloy, this lightweight (2.5 kg) yet durable antenna withstands 60 m/s winds, making it perfect for remote, mountainous, or suburban deployments. Compatible with N-type connectors, it supports 100W max power and is optimized for 4G/5G CPE, fixed wireless access, and backhaul links.
ELECTRICAL | |
Model | AN-Q28 |
Frequency Range | 1710-3800-MHz |
Bandwidth | 2090-MHz |
Gain | 24-dBi |
Beamwidth | H：12°E：16° |
F/B Ratio | 25-dB |
VSWR | ≤2.0 |
Polarization | Vertical or Horizontal |
Max power | 100 -W |
Nominal Impedance | 50 -Ω |
MECHANICAL | |
Connector | N female or customized |
Antenna Dimension | 0.6x0.9-M |
Weight | 2.5-Kg |
Rated Wind Velocity | Aluminum Alloy |
Diameter of the Pole | 60-m/s |
Wide Frequency Range: Covers 1710–3800 MHz (4G/5G bands) with 2090 MHz bandwidth.
High Gain & Precision: 24 dBi gain and narrow beamwidth for targeted, interference-free signals.
Durable Construction: Aluminum alloy grid design reduces wind resistance (60 m/s rated).
Low Signal Loss: VSWR ≤2.0 and 50Ω impedance ensure efficient power transfer.
Line-of-Sight Optimization: Requires direct visibility to signal sources for optimal performance.
Easy Deployment: Compact 0.6×0.9m size and 2.5 kg weight for hassle-free installation.
Versatile Polarization: Supports vertical/horizontal polarization for flexible alignment.
High Power Handling: 100W max power for reliable performance in demanding conditions.
