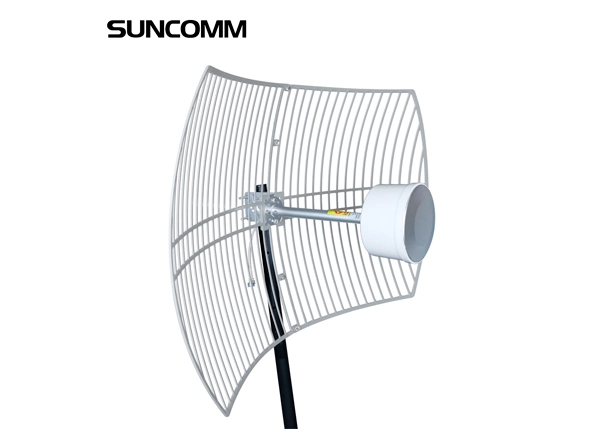

The AN-Q38 Grid Parabolic Antenna is a high-performance directional antenna designed for robust wireless communication across multiple frequency bands. Operating in the 698-960MHz, 1710-2700MHz, and 3300-3800MHz ranges, it delivers exceptional gain (16dBi, 22dBi, and 24dBi, respectively) and precise signal targeting, making it ideal for long-distance transmissions, cellular networks, and broadband applications. Its grid parabolic design ensures durability and reduced wind load, while the dual-polarization (V+H) support enhances signal reliability. With a 100W max power handling and low VSWR (≤2.5), the AN-Q38 is engineered for efficiency and stability in demanding environments, including harsh weather conditions (rated for 60 m/s wind).
ELECTRICAL | |||
Model | AN-Q38 | ||
Frequency Range | 698-960-MHz | 1710-2700-MHz | 3300-3800-MHz |
Bandwidth | 262-MHz | 990-MHz | 500-MHz |
Gain | 16dBi | 22dBi | 24dBi |
Beamwidth | H：14° E：16° | H：7° E：9° | H：6° E：8° |
F/B Ratio | ≥20-dB | ≥23-dB | ≥25-dB |
VSWR | ≤2.5 | ≤2.5 | ≤2.5 |
Polarization | V+H | V+H | V+H |
Max power | 100 -W | ||
Nominal Impedance | 50 -Ω | ||
MECHANICAL | |
Connector | 2*N or N female or customized |
Antenna Dimension | 600*900-M M (feed:167*392MM) |
Weight | 6/-Kg |
Rated Wind Velocity | 60-m/s |
Diameter of the Pole | Φ40~50 |
Wide Frequency Coverage: Supports 698-960MHz, 1710-2700MHz, and 3300-3800MHz for versatile applications.
High Gain & Precision: Delivers 16dBi, 22dBi, and 24dBi gain with narrow beamwidth (H: 6°–14°, E: 8°–16°) for focused signal direction.
Dual Polarization: Vertical + Horizontal (V+H) polarization improves signal quality and reduces interference.
Durable Construction: Grid parabolic design (600×900mm, 6kg) minimizes wind resistance and withstands 60 m/s winds.
Low VSWR: ≤2.5 ensures efficient power transfer and minimal signal loss.
High Power Handling: Supports up to 100W for robust performance in high-demand scenarios.
Flexible Mounting: Compatible with 40-50mm diameter poles and customizable N-type connectors.
Reliable Backward Signal Rejection: F/B ratio ≥20dB reduces interference from rear signals.
Standard Impedance: 50Ω input impedance for seamless integration with RF systems.
