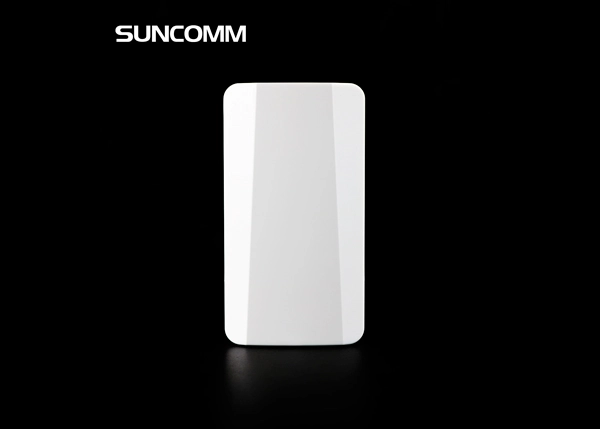

The AP401 is a high-performance, engineering-grade outdoor wireless access point designed for reliable long-distance connectivity in harsh environments. Equipped with a powerful 580MHz enterprise chip and dual-band support (2.4G @ 300Mbps), it ensures stable transmission even at extreme temperatures (-40°C to +70°C). Its built-in 12dBi directional antenna enhances signal coverage, while flexible power options (PoE or DC 12V) simplify deployment. The device features a signal strength indicator for optimal alignment and supports point-to-point or point-to-multipoint networking (up to 8 nodes). With waterproof, dustproof, and anti-interference design, the AP401 is ideal for surveillance, industrial networks, and remote monitoring.
| Category | Parameter | Specification |
| Basic Info | Model | AP401K |
| Main Chip | High-performance enterprise chip | |
| Performance | Frequency | 580MHz |
| Wireless Tech | 2.4G: 300M 802.11b/g/n MIMO | |
| Memory | RAM | 8MB DDR |
| Flash | 2MB | |
| Network | Interface | 1×10/100Mbps adaptive |
| Controls | Button | Digital switch/reset (short press: +1, long press 15s: factory reset) |
| Indicators | LAN status, Power | |
| Power | Supply | 24V 0.5A PoE or DC 12V 1A |
| Consumption | <10W | |
| Environment | Operating Temp | -30℃~+55℃ |
| Storage Temp | -40℃~+70℃ | |
| Humidity | Operating: 10%~90% | |
| Storage: 5%~95% (non-condensing) | ||
| Physical | Weight | Gross: 0.60kg, Net: 0.35kg |
| Antenna | Type | Built-in 12dBi dual-polarized directional |
| Beamwidth | 45° (H/V) | |
| RF Specs | Frequency | 2.300GHz~2.4835GHz |
| Channels | 2.4G: 1、2、3、4、5、6、7、8、9、10、11、12、13、32、33、37、38、42、43 | |
| Modulation | OFDM: BPSK/QPSK/16-QAM/64-QAM | |
| DSSS: DBPSK/DQPSK/CCK | ||
| TX Power | 11n: 14±2dB@MCS7, 16±2dB@MCS0 | |
| 11g: 15±2dB@54M, 17±2dB@6M | ||
| 11b: 17±2dB@11M, 19±2dB@1M | ||
| RX Sensitivity | 11n: -70dBm@MCS7, -88dBm@MCS0 | |
| 11g: -72dBm@54M, -88dBm@6M | ||
| 11b: -85dBm@11M, -94dBm@1M | ||
| EVM | 802.11n: ≤-28dB | |
| 802.11g: ≤-25dB | ||
| 802.11b: ≤-10dB | ||
| Freq. Offset | ±20ppm | |
| Software | Modes | Master AP, Slave AP (dial code) |
| Networking | Point-to-point, Point-to-multipoint (≤8 nodes) | |
| Management | English WEB interface | |
| Network | Static/DHCP | |
| Bridge | Real-time remote management | |
| Wireless | WLAN config/analyzer, Radio config, User management | |
| System | Time, Password, Backup/Restore | |
| Restart | Immediate/Scheduled | |
| Updates | Local via WEB |
High-Speed Connectivity: 2.4G @ 300Mbps with MIMO technology for stable data transfer.
Extreme Durability: Operates in -40°C to +70°C, waterproof & dustproof (IP-rated).
Long-Range Antenna: Built-in 12dBi dual-polarization directional antenna (45° beamwidth).
Easy Installation: Signal strength indicator for precise alignment; supports PoE or DC power.
Flexible Networking: Point-to-point or point-to-multipoint (up to 8 connections).
Secure & Reliable: Hidden wireless tech, anti-interference, and stable transmission.
Remote Management: Web-based configuration for easy monitoring and updates.
Low Power Consumption: <10W, energy-efficient for continuous operation.
