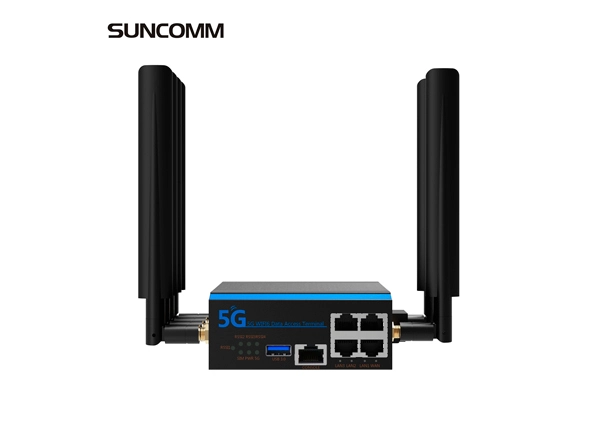

The SUNCOMM CP590 is a cutting-edge 5G & WiFi-6 Smart Router designed to deliver ultra-fast broadband connectivity for both home and business applications. Powered by the Qualcomm™ SDX62 modem, it supports NSA/SA dual-mode 5G, ensuring seamless compatibility with global networks. With 5G speeds up to 2.5Gbps (NSA) / 2.1Gbps (SA) and 4G LTE Cat 19, it effortlessly handles 4K/8K streaming, VR/AR, and cloud applications.
Featuring WiFi 6 (AX1800), the CP590 offers dual-band coverage (2.4GHz @ 600Mbps and 5GHz @ 1200Mbps) with 2x2 MIMO for stable, high-speed wireless performance. Its Mesh networking support ensures extended coverage, while 4x4 MIMO on 5G bands enhances signal strength and reliability.
The rugged design includes three Gigabit LAN ports, a Gigabit WAN port, and dual SIM slots for flexible connectivity. With an operating range of -20°C to 50°C, it’s built for durability in diverse environments.
Ideal for mobile offices, gaming, and IoT deployments, the CP590 combines plug-and-play simplicity with enterprise-grade performance.
| Category | Parameter | Specification |
| Basic Info | Model | CP590 |
| CPU | MTK7621AT+SDX62 | |
| Wireless | WiFi Frequency | 2.4G & 5G |
| WiFi Standard | 2.4G: 802.11b/a/n/ax 2T2R MIMO | |
| 5.8GHz: 802.11a/n/ac/ax 2T2R MIMO | ||
| WiFi Speed | 2.4GHz: 600Mbps | |
| 5GHz: 1200Mbps | ||
| 5G/4G | 5G NR | 3GPP Release 16 NSA/SA, Sub-6 GHz |
| 5G Network Mode | NSA/SA | |
| 5G/4G Data Rate | 5G SA: 2.1Gbps/900Mbps | |
| 5G NSA: 2.5Gbps/650Mbps | ||
| LTE: 1.0Gbps/200Mbps | ||
| Frequency Bands | 5G NR NSA | n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 |
| 5G NR SA | Same as NSA bands | |
| 5G MIMO | DL 4×4 MIMO: n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 | |
| LTE-FDD | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 | |
| LTE-TDD | B34/38/39/40/41/42/43/48 | |
| LTE MIMO | DL 4×4 MIMO: B2/B4/B5/B12/B13/B14/B17/B25/B26/B29/B30/B66/B41/B42/B43/B48/B71 | |
| WCDMA | B1/2/4/5/8/19 | |
| Modulation | 5G | GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM |
| WiFi | 1024-QAM/OFDMA | |
| Physical | Dimensions | 125×115×50mm |
| Interfaces | 3×Gigabit LAN | |
| 1×Gigabit WAN | ||
| 1×12V 2A DC Power | ||
| 1×Reset Button | ||
| 1×CONSOLE | ||
| 2×SIM slots (4FF, support 3V/1.8V) | ||
| Reset | Long press 10s for factory reset | |
| MESH | Short press for networking (blue light flashes) | |
| LED Indicators | Power, RF Signal, RUN Signal, SIM Signal | |
| Power Consumption | <24W | |
| Environment | Operating Temp | -20℃~+50℃ |
| Storage Temp | -40℃~+70℃ | |
| Humidity | 5%~95% (Non-condensing) | |
| Weight | TBD |
Advanced 5G Connectivity
Powered by Qualcomm SDX62 5G modem
Supports both NSA/SA 5G network modes
Global 5G band compatibility (n1/n78/n79 etc.)
Delivers ultra-fast speeds up to 2.5Gbps download
High-Performance WiFi 6
Dual-band AX1800 WiFi 6 (802.11ax)
2.4GHz (600Mbps) + 5GHz (1200Mbps) concurrent operation
2×2 MU-MIMO technology for multiple device connections
OFDMA technology reduces latency for smart homes
Professional-Grade Hardware
MTK7621AT dual-core processor
4×4 MIMO antenna configuration for 5G
Three Gigabit LAN ports + one Gigabit WAN port
Dual SIM card slots for network redundancy
Smart Networking Features
Built-in Mesh networking support
Seamless band steering between 2.4G/5G
Advanced QoS for traffic prioritization
Web-based management interface
Enterprise-Ready Design
Industrial-grade temperature range (-20°C to 50°C)
Compact size (125×115×50mm) for flexible deployment
Low power consumption (<24W)
Wall-mountable design
Comprehensive Security
WPA3 encryption standard
Firewall and VPN passthrough
MAC address filtering
Guest network isolation
Versatile Applications
Ideal for SME/SOHO environments
Supports 4K/8K video streaming
VR/AR ready with ultra-low latency
Reliable connectivity for IoT deployments
