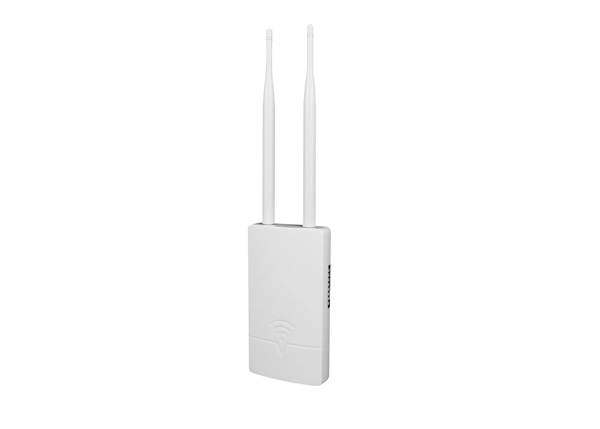

The N595 Outdoor WiFi Access Point delivers high-performance wireless connectivity for industrial and commercial applications. Powered by MediaTek's industrial-grade chips (MT7628AN+MT7613BEN), it ensures stable operation in extreme temperatures (-40°C to 55°C) with enhanced heat dissipation for 24/7 reliability.
Featuring dual-band WiFi (2.4GHz @ 300Mbps + 5GHz @ 867Mbps), it offers total speeds up to 1200Mbps with 2T2R MIMO technology and an external RF power amplifier for extended coverage. Flexible power options include 24V PoE or 12V DC, ideal for remote installations. The compact, IP-rated housing supports wall/pole mounting and includes dual 5dBi omnidirectional antennas (RP-SMA connectors).
Advanced features:
64-user capacity with AP/Router/MESH modes
WEB management (DHCP/PPPoE/VLAN)
Ping watchdog & scheduled reboots for maintenance-free operation
Perfect for smart cities, warehouses, and outdoor venues.
| Category | Parameter | Specification |
| Main Chip | Processor | MT7628AN+MT7613BEN |
| Frequency | 580MHz | |
| Memory | RAM | 128MB |
| Flash | 16MB | |
| Wireless | Technology | 802.11b/g/n 2T2R MIMO |
| 802.11a/n/ac 2T2R MIMO | ||
| Interfaces | Network | 1×10/100Mbps WAN PoE |
| 1×10/100Mbps LAN | ||
| Power | DC 12V/1A (5.5×2.1mm plug) | |
| Antenna | RP-SMA connectors ×2 | |
| Controls | Button | Reset (6s hold for factory reset) |
| Indicators | PWR, LAN/WAN, LAN, WLAN×4 | |
| Antennas | Type | 2.4G 5dBi outdoor omnidirectional ×2 |
| Power | Input | 24V/0.5A PoE or DC 12V/1A |
| Environment | Operating Temp | -40℃～55℃ |
| Storage Temp | -50℃～70℃ | |
| Humidity | Operating: 10%～90% | |
| Storage: 5%～90% (non-condensing) | ||
| Physical | Dimensions | 15.5×8.5×3cm (excl. antennas) |
| Weight | 100g | |
| WiFi Spec | Frequency | 2.4GHz/5.8GHz |
| Channels | 2.4G: 1、2、3、4、5、6、7、8、9、10、11、12、13 | |
| 5G: 36、40、44、48、52、60、64、149、153、157、161、165 | ||
| Modulation | 802.11b/g/n/ac | |
| Software | Modes | AP/Route/MESH |
| Capacity | 64 users | |
| Management | WEB (English/Chinese) | |
| Status | System/Wireless/Traffic | |
| Network | DHCP/Static IP/PPPoE | |
| Wireless | SSID, encryption, isolation etc. | |
| System | Upgrade, backup, reset etc. | |
| Advanced | RF configuration, multiple wireless configuration, Scheduled switch, Ping watchdog, Scheduled reboot, Change password, Time management, Diagnostics |
MediaTek offers cost-effective wireless chips with industrial standard circuitry and resistance to high and low temperatures. The enhanced heat dissipation and optimized airflow prevent overheating issues, ensuring real-time, long-term, stable, and efficient transmission of user network data, thereby enhancing the user experience.
It supports the 802.11a/b/g/n/ac protocols and provides wireless access speeds of 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, offering a total wireless access speed of 1200Mbps.
Equipped with an external dedicated WiFi RF power amplifier chip, it ensures wider signal coverage, higher rates, and longer transmission distances.
It supports 24V PoE remote power supply and 12V/1A local DC power supply, providing flexible power options suitable for wireless engineering scenarios with inconvenient power supply, thereby reducing construction costs.
It comes with an external threaded SMA standard connector and includes a bonus outdoor 5dBi omni-directional antenna. Users can also flexibly match it with other 2.4GHz/5.8GHz dual-band antennas based on different usage environments.
It features a stylish and space-saving design and supports wall mount or pole mount installation, offering flexibility in installation. It significantly reduces construction difficulty and improves construction efficiency without affecting the original design.
