5G Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.
The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

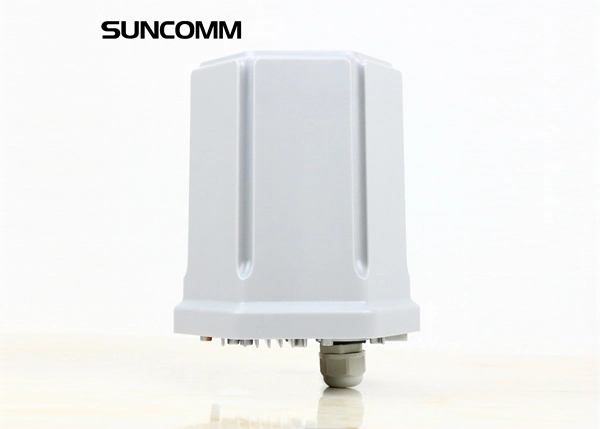

Outdoor 5G, the waterproof level is up to IP66, the appearance is exquisite and beautiful, and it is suitable for various installation methods: wall hanging, pole holding.
| Model | O3 |
| CPU | SDX62 |
| WiFi Frequency | 2.4G&5G |
| WiFi Standard | 2.4G:802.11b/g/n |
| WiFi | 2.4GHz: 300Mbps (Only used in debug mode） |
| 5G NR | 3GPP Release 16 NSA/SA operation, Sub-6 GHz |
| 5G Network Mode | NSA/SA |
| 5G/4G Data Rate | 5G SA Transmission Speed: 2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed: 2.5Gbps/650Mbps (up to ISPs) LTE: Down 1.0 Gbps; UP 200 Mbps |
| 5G Frequency Bands | 5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 5G NR SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 MIMO Downlink：4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 |
| 4G&3G Frequency Bands | Downlink Cat 19/ Uplink Cat 18 LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 MIMO DL: 4 × 4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/ B29/B30/B66/B41/B42/B43/B48/B71 WCDMA B1/ 2/ 4/ 5/ 8/ 19 |
| Modulation Mode | 5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM WIFI: 1024-QAM / OFDMA |
| Dimension | 145X130X45MM |
| Interface | 1*10/100M/1000 LAN 1 Reset Button 1 SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card: internal) |
| Reset | Reset（Long press 10 seconds to restore the factory settings） |
| LED Indicator | battery power, 5G Signal, WiFi Signal |
| Power Consumption | ＜24W（POE 48V/1A） |
| Environment | Operating Temperature: -20℃~+50℃ Storage Temperature: -40℃~+75℃ Humidity: 5%～95%(Non condensation) |
| Weight | 1.8KG(Includes color box accessories) |
5G NR
Qualcomm™SDX62 modem
IP66
Waterproof grade IP66
1G Port
High-speed interface
POE
Standard 48V POE power supply
