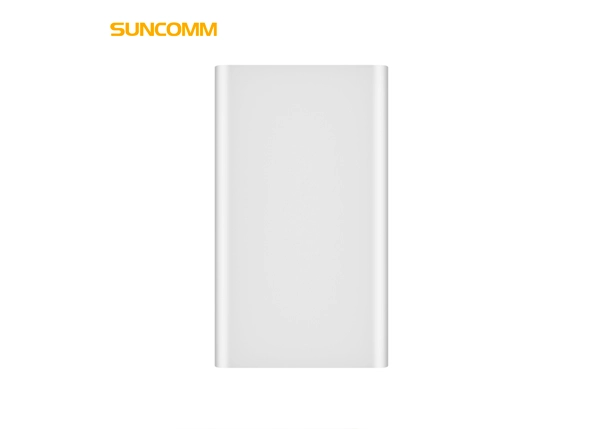

SUNCOMM O6 outdoor CPE is a high-speed packet access FWA product. It is a multi-mode wireless terminal for home broad band, Office and industrial park.
You can connect the O6 with the RJ45 interface of indoor CPE, or connect the O6 with a computer.
In the service area of the 5G-Sub6/LTE/UMTS network, you can surf the Internet and send/receive emails cordlessly. The O6 is fast, reliable and easy to operate.
| Basic Information | Dimension | 186*111*35mm |
| Weight | About 700g | |
| Color | White | |
| Air Interface | Technical Standard | 5G NR Sub-6G, LTE, WCDMA |
| Operating Frequency | 5GNRSub-6GSA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 LTE: FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 TDD:B34/B38/B39/B40/B41/B42 WCDMA: B1/B5/B8 | |
| Performance Hardware | 5G Peak Data Throughput (theoretical value) | sub6G: DL: BW 100MHz 2.4Gbps UL: BW 100MHz 0.9Gbps LTE: CAT19DL: 1.6Gbps UL: 200Mbps |
| Receive Diversity | Support | |
| MIMO | Support DL 4x4 MIMO | |
| Internal Memory | 4GB+4Gb | |
| BB Chipset | Qualcomm SDX62 | |
| USIM | 1*4FF SIM (nano card) | |
| Power consumption | Max power consumption<20W | |
| Ethernet | 2.5G LAN*1 | |
| Power | POE(nonstandard default) | |
| LED | Power Indication 5G network Indication 4G network Indication ETH status | |
| USB | USB 2.0 micro (for Debug only) | |
| Antenna | Internal Antenna: 5G/4G Gain： 600MHz~960MHz: 0~2dBi 1400MHz~1550MHz: 1~3dBi 1710MHz~2690MHz: 2~4dBi 3300MHz~5000MHz: 3~5dBi | |
| Buttons | Reset hole | |
| ESD | ESD Protection circuit; 8kV contact / 10kV air discharge | |
| Software | SW Update | Local Update/FOTA/WebUI |
| IP-Passthrough | Support | |
| IPv4/IPv6 | Support | |
| UI | WebUI | |
| Data Statistics | Support | |
| Automatic APN Match | Support | |
| Install | Pole/Wall/Past on window/Beside on window | |
| Waterproof level | IP65 | |
| Environment | Operating Temperature | -40°C ~ +50°C |
| Storage Temperature | -40°C ~ +70°C | |
| Humidity | 5%~ 95% |
Frequency Band
5G sub6 DL up to 2.4Gbps
Ethernet
2.5Gbps Ethernet POE
Waterproof Level
IP65
SW Update
TR069 FOTA
