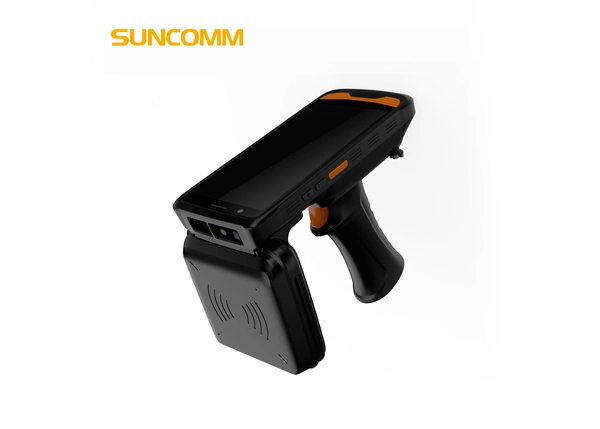

The R366C Handheld Terminal PDA is a high-performance industrial-grade device designed for efficient data collection and field operations. Featuring an ultra-lightweight ergonomic design, it ensures comfortable one-handed operation during prolonged use. Equipped with UHF RFID technology (0-10m range) and a multi-tag anti-collision algorithm, it achieves rapid scanning of 200+ tags per second. The device boasts a 5.5-inch IPS HD touchscreen, 16MP HD camera, and 4G/WiFi/Bluetooth connectivity for real-time data transmission. Powered by a Qualcomm octa-core processor and 10000mAh hot-swappable battery, it delivers exceptional performance in retail, warehousing, and inspection scenarios.
| Parameter | Value |
| CPU | Octa-core Qualcomm SDM450 1.8G |
| OS | Android 9.0 |
| RAM+ROM | 4GB+64GB |
| Extra memory | Expansible through TF, support 128GB |
| UHF RFID Module | Impinj E710 |
| Frequency | FCC(America)902-928MHz or ETSI(Europe)865-868MHz or SRRC-MI(China)840-845MHz、920-925MHz |
| Protocol | EPCClass 1 Gen2(iso 18000-6C) |
| Reading Distance | ＜10m,4dbi antenna |
| Rates | >900tags/s |
| Size | 170mm79mm22.6mm |
| Weight | about 700g |
| Display screen | 5.5 inch IPS HD screen(720*1440) |
| Touching screen | Multi-touch, Capacitive touch screen |
| Battery capacity | 3.8V,10000mAh(detachable) |
| Expansion slot | Nano-SIM card2, TF card1 |
| Interface | USB 2.0 Type-C, support OTG |
| Camera | Rear 16 MP, autofocus camera with flash; Front 8 MP(optional) |
| Notify | Tricolor notify light, Buzzer |
| Scanner | Honeywell HS7 & Honeywell 3603 & NLS-N1 etc. |
| PSAM Protocol | ISOEC 7816-1/2/3/4 |
| PSAM Channels | PSAM slot*4 |
| Dropping height | 120cm |
| Operating temperature | -10℃-50℃ |
| Storage temperature | -40℃-70℃ |
| Environment humidity | 5%RH-95%RH(No condensation) |
Advanced RFID Scanning: UHF (0-10m range) with 200+ tags/sec reading speed.
Powerful Hardware: Qualcomm octa-core CPU, 4GB+64GB memory, and Android 9.0 OS.
Long-Lasting Battery: 10000mAh removable battery with hot-swap support.
High-Resolution Imaging: 16MP autofocus camera with LED flash for clear documentation.
Rugged Design: IP65-rated for dust/water resistance and drop protection.
Multi-Function Scanning: QR/barcode/NFC/HF RFID in one device.
Global Connectivity: 4G/WiFi/Bluetooth 4.2 for seamless data sync.
Ergonomic & Lightweight: Slim grip for reduced fatigue during extended use.
