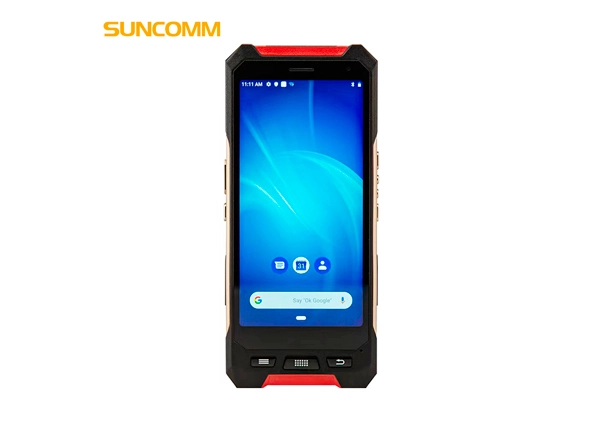

The R530C Handheld Terminal PDA is a rugged, high-performance mobile device designed for demanding industrial and commercial applications. Featuring a 6-inch IPS HD screen (1080×2160 resolution) and a striking red design, it combines aesthetics with durability, passing 1.2m drop tests and meeting IEC rolling specifications. Powered by a Qualcomm octa-core processor (1.8GHz) with Android 9.0, it delivers fast data processing and supports 4G/WiFi/Bluetooth/GPS for seamless connectivity. Equipped with UHF RFID (1m range), NFC, barcode scanning, and 16MP+8MP cameras, it excels in logistics, parking management, and field inspections. The hot-swappable battery and IP65 rating ensure uninterrupted operation in harsh environments.
| Category | Parameter | Specification |
| Physical Parameters | Overall Size | 188mm * 83mm * 22mm |
| Weight | About 500g | |
| Display | 6 inch IPS HD screen, FHD + resolution (1080*2160) | |
| Touch Screen | Capacitive screen, multi-touch | |
| Battery Capacity | 3.8V, 6000mAh, non-removable | |
| Expansion Slot | 2 Nano SIM cards, 1 TF card (two out of three) | |
| Communication Interface | USB 2.0 Type-C, supports OTG | |
| Camera | Rear: 16 million pixels, supports flash, auto focus. Front: 8 million pixels | |
| Breathing Light | Tricolor breathing light | |
| Performance Parameters | Processor | Qualcomm SDM450 eight-core 1.8Ghz |
| Operating System | Android 9.0 | |
| RAM+ROM | 2GB +16GB (optional 4GB +64GB) | |
| Extended Memory | Can be expanded by TF card, supports up to 128GB | |
| Data Communication | WIFI | IEEE 802.11a/b/g/n, supports dual band 2.4G and 5G |
| 2G/3G/4G | TDD-LTE: B38/40/41 FDD-LTE: B1/3/5/7/8/20 WCDMA: B1/5/8 TD-SCDMA: B34/39 EVDO: BC0 CDMA: BC0 GSM: B5/3/8 | |
| Bluetooth | Bluetooth 4.0 BLE | |
| Positioning | Beidou/GPS/GLONASS positioning | |
| Function Selection | 1D/2D Barcode Scanners | Honeywell HS7, Honeywell 3603, NLS-N1, etc. |
| LF (Low Frequency) | Frequency: 125K or 134.2K, Effective distance: 1-3cm | |
| HF (High Frequency) | Operating frequency: 13.56MHz, Protocol standards: ISO14443A/B, ISO15693, NFC, Label standard: M1 card (S50, S70), CPU card, NFC tag, etc., Reading distance: 2-3cm | |
| UHF | Built-in 40*40 ceramic module, Operating frequency (region-specific), Protocol Standard: EPC Class 1 Gen 2 (ISO 18000-6C), Reading distance: ≤ 2 meters, Label reading rate: ≥ 50 tags/s | |
| Public Security Fingerprint | Sensor type: semiconductor capacitive, Image pixels: 256*360, Image resolution: 500dpi, Grayscale: 8 bit, 256 levels | |
| PSAM | Protocol: ISO/IEC 7816-1/2/3/4, Supports one PSAM slot | |
| Use Environment | Drop Height | 120cm |
| Working Temperature | -10 ℃ ~ 50 ℃ | |
| Storage Temperature | -40 ℃ ~ 70 ℃ | |
| Humidity | 5% RH-95%RH (no condensation) |
Rugged Design: 1.2m drop-proof, IEC-certified, and IP65-rated for dust/water resistance.
Powerful Performance: Qualcomm octa-core 1.8GHz CPU, 4+64GB memory (expandable to 128GB).
Advanced Scanning: UHF RFID (1m), NFC, and 1D/2D barcode scanning for versatile data capture.
High-Resolution Display: 6-inch IPS HD screen (1080×2160) for clear visuals.
Dual Cameras: 16MP rear and 8MP front cameras with autofocus for documentation.
Multi-Network Support: 4G, dual-band WiFi, Bluetooth, and GPS for real-time data sync.
Security Features: ID card reader, PSAM slot, and NFC for secure transactions.
Long Battery Life: Hot-swappable battery for extended field use.
