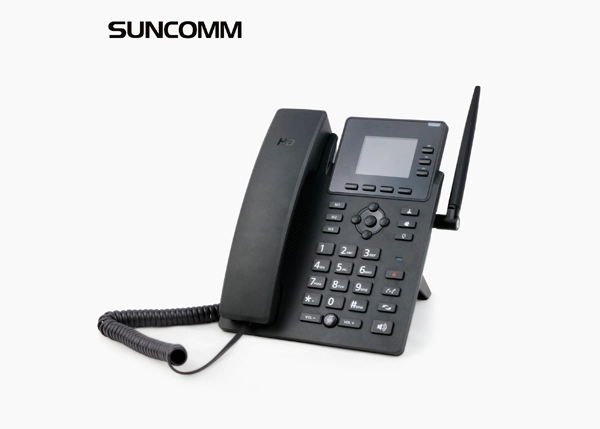

SC01 build with Spreadrum 4G LTE 5 mode(embedded TD-LTE, LTE FDD,WCDMA and GSM/GPRS/EDGE), Support VOLTE HD voice, It features a 2.4-inch 320x240 pixel screen, supports 2.4G WIFI connection, suitable for mobile office occasions.
SC01 supports HD audio calls based on the SIP protocol, and has excellent hardware ECHO suppression and noise reduction effects; supports the standard SIP2.0 protocol, and is compatible with mainstream soft switches, IMS and IPPBX systems on the market, as well as various SIP protocol mainstream audio terminal.
SC01 fixed line is a multi-functional communication terminal, which can be used for voice communication on the IP network and is a VOIP terminal product with high practicality and manageability. It can be used for internal telecom line and network and has Internet access user. It can connect to the operator's 4G network, and the communication cost is extremely low with the support of the operator. It can be used as the center of each proprietary network and is the most traditional communication tool.
| Category | Parameter | Specification |
| Phone Interface | Indicators | Incoming call/missed message LED |
| UI Language | Chinese/English (and others) | |
| Call Display | Shows name and number | |
| Physical Interfaces | Network | 1*RJ45 100M port (Optional) |
| USB | 1*USB 2.0 port | |
| Audio | 2*RJ9 (4P4C) Handset/headphone jacks | |
| Network & Security | Features | Call server redundancy, NAT Traversal (STUN) |
| Modes | Proxy mode, peer-to-peer SIP link mode | |
| IP Allocation | Static/Dynamic | |
| Protocols | HTTP, SNTP, UDP/TCP/TLS | |
| QoS | DSCP, STRP supported | |
| Audio | Technology | HDVoice, ECT, ANC noise reduction |
| Codecs | G.722, GSM, PCMA, PCMU, G.729AB, iLBC, AMR, etc. | |
| Features | Full duplex, VAD, CNG, AEC, AGC, ANS | |
| Standards | 3GPP TS 24.605 compliant | |
| Phone Features | SIP Accounts | Supports 3 accounts |
| Call Features | Hold/mute/DND/Redial/Speed dial | |
| Call Management | Forward/transfer/conference (3-way) | |
| Direct Calling | IP calls without SIP proxy | |
| Customization | DSS key programming | |
| Directory | Capacity | 1000 contacts |
| Management | Search/import/export/edit/delete | |
| Physical Specs | Color | Black |
| Power | 5V/1A DC input | |
| Battery | 1000mAh | |
| Environment | 10%~90% humidity, -10~50°C operation |
Good user experience
The Simple and elegant outlook, It features a 2.4-inch color screen, with a user-friendly UI, bringing a comfortable and efficient experience. Also the Snap-On bracket design on the back of the SC01 fits perfectly with the desktop, making it easy to use and firm.
Data transmission
The phone built-in 2.4G WIFI, RJ45 network interface (Optional), also supports 4G SIM card networking, and a variety of network selection methods make the network connection more flexible and convenient to meet customers’ various online needs.
HD AUDIO
Adopting industry-leading intelligent noise cancellation technology, it can provide high-definition, perfect sound quality, and provide users with a first-class communication experience.
Secure Deployment Configuration Protocol
Users do not need to manually configure and upgrade the phone, just need to power on and connect to the Internet, and the phone can be automatically deployed, saving a lot of time and cost.
