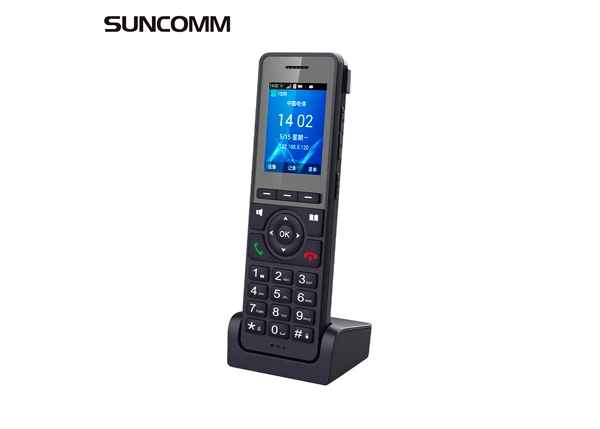

SC07 as a high-end enterprise IP phone build with Spreadtrum 4G LTE 5 mode(embedded TD-LTE, LTE FDD,WCDMA and GSM/GPRS/EDGE), Support VOLTE HD voice, It features a 2.4-inch 320x240 pixel color screen, Support build-in WIFI(2.4G),long standby time more than 100 hours, The average talk time more than 5 hours. Rich functions and long standby time are very suitable for mobile office places such as residences, warehouses, retail stores, hotels, etc.
It has excellent hardware ECHO suppression and noise reduction effects; supports standard SIP2.0 protocol, compatible with mainstream soft switches, IMS and IPPBX systems on the market, as well as various SIP protocol audio and video terminals.
SC07 portable IP phone is a multi-functional communication terminal that performs voice communication on the IP network and is a VOIP terminal product with high practicability and manageability. It can connect to the operator's 4G network. With the support of the operator Communication costs are extremely low. It can also be used as a cost-effective, highly stable and most traditional communication tool in various proprietary networks.
| Category | Parameter | Specification |
| SIM Card | Type | Standard SIM card × 2 |
| Display | Type | 2.4" COLOR LCD |
| Keypad | Layout | 3×4 + 25 keys (12 DSS keys) |
| Connectivity | WiFi | 802.11b/g/n 2.4G AP |
| USB | Micro USB | |
| Band Versions | SC07-C | FDD_LTE:B1/B3/B8 TDD_LTE:B38/B39/B40/B41 3G:B1/B8 2G:B3/B8 |
| SC07-B | FDD_LTE:B1/B3/B5/B7/B8/B20 TDD_LTE:B38/B40/B41 3G:B1/B8 2G:B2/B3/B5/B8 | |
| SC07-A | FDD_LTE:B1/B2/B3/B5/B7/B8/B28A/B28B 3G:B1/B2/B5/B8 2G:B2/B3/B5/B8 | |
| Features | Speed Keys | M1-M3 + 2-9 number keys |
| Phonebook | 500 contacts max | |
| Call Records | 1000 records max | |
| Voice Mail | Unread message reminder | |
| Audio | Codecs | G.722/G.729/AMR/AMR-WB/GSM/PCMA/PCMU/SPEEX/iLBC/DTMF/ISAC-WB/OPUS |
| Technologies | VAD/CNG/AGC/ANS/AEC | |
| DTMF | RFC 2833, SIP INFO | |
| SIP | Protocol | SIP 2.0 (RFC3261) |
| Accounts | 3 SIP accounts | |
| Transports | UDP/TCP/TLS | |
| Network | Protocols | HTTP/TR069/RTP/SRTP |
| Provisioning | PnP/TR069 | |
| Phone Features | Contacts | XML/LDAP remote phonebook |
| Call Features | DND/Auto Answer/Call Transfer/Hold | |
| Power | Input | DC 5V |
| Battery | 1000mAh | |
| Physical | Adapter | Input: 100-240V • Output: 5V/1A |
| Environment | Temp: -10~50℃ • Humidity: 10%~90% | |
| Package Contents | Phone base ×1 • Handset ×1 • Power adapter ×1 | |
| Compatibility | PBX Systems | BroadSoft, Asterisk, FreeSWITCH, Huawei, Avaya, ZTE, Yeastar |
Good user experience:
The Simple and elegant outlook, It features a 2.4-inch color screen, with a use-friendly Ul, bringing a comfortable and efficient experience. Also the SC07 phone charging base has a built-in charging shrapnel, which can solve the problem of poor contact caused by uneven force when charging the IP phone. The card slot has a fixed function, which can well fix the IP phone terminal to keep it at a certain level/Angle without tipping over.
Data transmission:
The phone built-in 2.4G WIFI and supports 4G SIM card networking, and a variety of network selection methods make the network connection more flexible and convenient to meet customers' various online needs.
HD AUDIO:
Adopting industry-leading intelligent noise cancellation technology, it can provide high-definition, perfect sound quality, and provide users with a first-class communication experience.
Secure Deployment:
Configuration ProtocolUsers do not need to manually configure and upgrade the phone, just need to power on and connect to the Internet, and the phone can be automatically deployed, saving a lot of time and cost.
