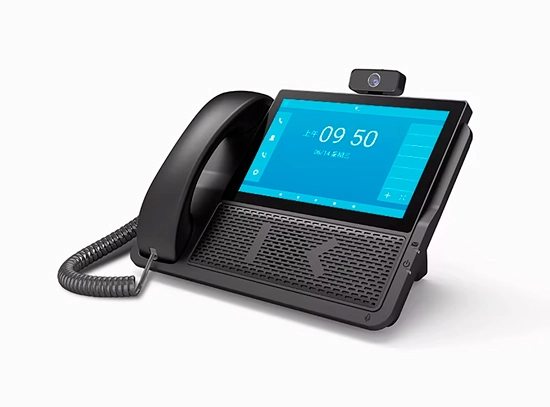

The SC29 Desktop IP Video Phone is a premium business communication solution featuring an 8-inch IPS HD touchscreen (1024×768) and quad-core A55 1.8GHz processor for seamless performance. Running Android 11, it supports 6 SIP accounts, 1080P video calls, and 6-way conferencing with advanced audio codecs (G.722, OPUS) and noise cancellation. Dual Gigabit LAN ports (PoE 802.3af), dual-band WiFi (2.4G/5.8G), and optional 4G/PSTN connectivity ensure flexible deployment. Enterprise features include LDAP directory, call recording, and auto-provisioning (TR069).
| Category | Specification |
| CPU | Quad-core A55 1.8GHz |
| Region-Specific Bands (Europe/Asia Pacific) | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 |
| LTE-TDD: B38/B40/B41 | |
| WCDMA: B1/B5/B8 | |
| GSM: B3/B8 (CE/UKCA/RCM/NCC) | |
| Region-Specific Bands (North America/Latin America/Australia/New Zealand) | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| LTE-TDD: B40 | |
| WCDMA: B1/B2/B4/B5/B8 | |
| GSM: B2/B3/B5/B8 (FCC/Anatel) | |
| Region-Specific Bands (China/India) | LTE-FDD: B1/B3/B5/B8 |
| LTE-TDD: B34/B38/B39/B40/B41 | |
| WCDMA: B1/B5/B8 | |
| GSM: B3/B8 (SRRC/NAL/CCC) | |
| DDR | DDR4 2GB |
| EMMC | 16GB |
| OS | Android 11.0 |
| SDK | PSTN/SIP API Interface document |
| Recording | PSTN/SIP recording |
| Video Conferencing | SIP Multi-party audio and video conferencing |
| Video Resolution | 1080P |
| Speed Dial | Set speed dial |
| Address Book Management | Import/export address book via PC, support EXCEL export for corporate address book |
| Recording Management | Export recordings to PC |
| Call Record Management | Export call records to PC |
| PSTN Answer | Supported |
| LCD Size | 8 inches, 1024 × 768 |
| Touch Screen | Multi-touch |
| Camera | USB 5MP |
| Viewing Angle of Lens | 120 degrees adjustable shielding |
| Key Pad | 26-keypad |
| LED Light | 3 LED (PWR, FREE, MES) |
| SIP Line | 6 SIP Lines |
| PSTN Line | Optional DTMF/FSK analog phone |
| 4G Network | Optional full bands 4G (data only) |
| WIFI Network | 2.4G/5.8G |
| LAN Wired | Dual 10/100/1000 Gigabit |
| Handle Interface | RJ9 |
| Headphone Interface | 3.5mm headphone jack |
| USB Interface | 1×Micro USB, 1×Type A, 1×Type C |
| POE Power | 13W 802.3 AF |
| DC Power | DC 12V |
Good user experience
The Simple and elegant outlook, It features a 8.0-inch 1024×768 IPS ID color screen, with a use-friendly UI, bringing a comfortable and efficient experience. Also the Snap-On bracket design on the back of the SC29 fits perfectly with the desktop, making it easy to use and firm.
Powerful & good expansibility
Built-in 2.4G/5G WIFI, 2*1000M network ports make the connection flexible and convenient . 1* PSTN port, which can be connected to the telephone line & meet customer needs in different scenarios. It has a USB interface, which can expand the storage of call recordings. Also support POE power supply, Type-C interface and power line power supply, multiple charging methods to meet various needs of customers.
HD AUDIO
It has professional audio processing technology to make the sound quality clearer, 3W full frequency speaker and super large sound cavity, bringing users a high-quality hands-free calling experience. The 5 million high-definition camera can be blocked and the angle of the camera can be adjusted, and it supports up to 1080P video calls. By combining advanced algorithms with rich experience in the network, it can be used even under extremely challenging network conditions. Can provide excellent video quality.
Secure Deployment Configuration Protocol
Users do not need to manually configure and upgrade the phone, just need to power on and connect to the Internet, and the phone can be automatically deployed, saving a lot of time and cost.
