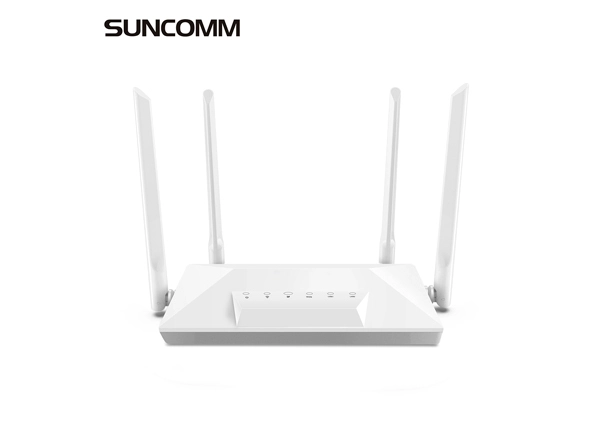

SC300 is a new 4G LTE CPE with LTE CAT 4 technology. The router is mainly aimed at the office, home, security and IoT. It provides high-speed and reliable routing and data transmission capabilities, to meet their different application scenarios.
| Application Scenarios | Home, Office, IoT, Security |
| Concurrent Clients | 30 |
| CPU | MTK7628KN |
| Interface | 1 *FE Mbps WAN, 2*FE Mbps LAN |
| Button | Reset, WPS |
| Power Suppply | DC12V /1A |
| Flash/Memory | 2MB/8MB |
| SIM Card | Standard SIM |
| LED | PWR, WAN, LAN, 2.4Gwifi, 4G, WPS |
| Dimensions | 225*158*32(mm） |
| Antennas | 2.4G: 2T2R 4G: 2T2R |
| Antenna Gain | 5dBi |
| Frequency | 802.11b/g/n：2.4~2.4835GHz |
| Radio Rate | 2.4G: Up to 300Mbps |
| IPV4/IPV6 | Support |
| Wireless Security | WPA-PSK/WPA2-PSK, WPA/WPA2 |
| Modulation | 11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11g: OFDM: 64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM |
| Receiver Sensitivity | 11b: <-84dbm@11Mbps； 11g: <-69dbm@ 54Mbps； 11n: HT20<-67dbm HT40: <-64dbm |
| 4G Module | LTE CAT4 |
| Frequency | 4G LTE FDD: B1/B3/B7/B8/B20/B28 4G LTE TDD: B38/B40/B41 3G B1/B3/B8 |
| GSM | 900MHz/1800MHz |
| GNSS | GPS, GLONASS, BeiDou/Compass, Galileo, QZSS |
| Mode | 4G Router |
| WiFi Setting | Wireless Setting, Channel bandwidth Setting, WPS |
| Status | CPU Status, Interface Status, 4G Status Client List Internet Status |
| Network | LAN WAN DHCP APN |
| Traffic assistant | Statistics and display the usage of traffic in 4G mode. |
| Sys | Username Managerment Reboot Upgrade/Restore/Bankup Sys time & date Sys logs |
| Setting Guide | Type of connect Internet Network WiFi |
| Operating Environment | Operating Temperature: Normal: 0°C to +45°C; Operating Humidity: -20° C to +70° C Operating Humidity: 5%~ 95% Storage Humidity: 5%~ 95% |
1*10/100Mbps RJ45 WAN
2*10/100Mbps RJ45 LAN
1*SIM Card
Throughput: LTE CAT4
FDD-LTE 150Mbps/50Mbps
Support Multiple Internet Connect: 2G, 3G, 4G, PPPOE, APN
Radio rate up to 300Mbps, support wireless security functions
MTK7628KN CPU
Memory: 8MB
4G Module: LTE CAT4
Flash: 2MB
Support 3*10/100Mbps RJ45
Support multi-carrier (2G/3G/4G LTE),
External reset button,
Power supply: DC 12V 1A，
Support external LED indicator,
Button: Power, Reset, WPS, WiFi
Support SIM lock card and traffic statistics
Support TR069 and upgrade online
Support IPV4, Protocol
Support FOTA
Support antenna: 2*WIFI+2*LTE,(5dBi gain.)
