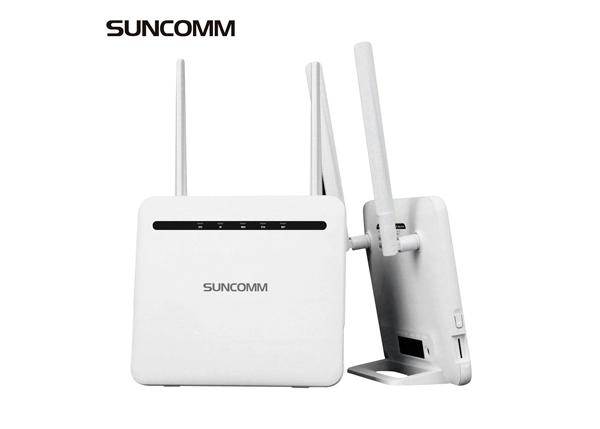

SC718 is a wireless routing device that supports 4G LTE CAT4.
Up to 150Mbps downlink and 50Mbps uplink are supported. Multiple users can be accessed simultaneously, support WiFi AP mode, which is suitable for home users. The external LTE antenna is suitable for various network environments; Provide users with high-speed Internet experience at a price close to consumers.
Professional testing standards guarantee the quality experience of customers.
| Basic Information | Dimension | About 165*115*40mm |
| Weight | About 158g (without battery) | |
| Color | White | |
| Air Interface | Technical Standard | Compatible with FDD-LTE |
| Frequency | LTE FDD: B1/B3/B5/B7/B8/B20/28 LTE TDD: B38/40/41 WCDMA: B1/B5/B8 | |
| Wi-Fi | 2.4GHz, WIFI 2*2MIMO, 802.11 /b/g/n 2.4GHz, WIFI 1*1MIMO, 802.11 ax/b/g/n | |
| Performance | Maximum Data Throughput | LTE CAT 4 FDD-LTE 150Mbps/50Mbps |
| Hardware | Receive Diversity | Support |
| MIMO | Support DL 2x2 MIMO | |
| BB Chipset | ASR1803 + PM803 | |
| Wi-Fi chipset | Wi-Fi4：RTL8192FR Wi-Fi6：AIC8800DW | |
| Memory | 1Gb | |
| Power Consumption | <12W | |
| Power Voltage | DC12V/1A | |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal | |
| LED | Power Indication LED RF Signal Strength LEDs Wi-Fi/WPS Indication LED WAN/LAN Status LED Internet Status LED | |
| USB | 1*USB (Internal) | |
| Antenna | 2*Internal LTE Antennas 2*Wi-Fi antenna (2* external LTE antenna is optional) | |
| Buttons | Reset/WPS, Power | |
| Ethernet | 4*WAN/LAN Port, 10BaseT/100Base automatic adaptive port | |
| RJ11 | 1*RJ11 (Optional), can support VOLTE | |
| Battery | 2920mAh (Optional) | |
| ESD | ESD Protection circuit; Contact±6KV, Air±10KV | |
| Software | SW Update | TR069 & Local Update/FOTA |
| Wi-Fi Mode | AP mode only | |
| Wi-Fi Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK | |
| Voice | VoLTE/VoIP | |
| IPV4/IPV6 | Support | |
| Firewall | Mac/IP address filter, Port forwarding, Wi-Fi Black/White list | |
| Data Statistics | Support | |
| VPN | PP2P/L2TP/IPSec | |
| Environment | Operating Temperature | Normal: 0℃ ~ +40℃ |
| Storage Temperature | -10°C ~ +60°C | |
| Humidity | 5%~ 95% |
4G LTE Compatibility: Works with FDD-LTE (B1/B3/B5/B7/B8/B20/B28) and TDD-LTE (B38/B40/B41) bands
WiFi 4 (802.11 b/g/n): Dual-band 2.4GHz 2×2 MIMO for stable wireless performance
Compact & Lightweight: Measures 165×115×40mm and weighs just 158g
Flexible Connectivity: Features 4×10/100M Ethernet ports and optional external LTE antennas
VoLTE Support: Includes RJ11 port for voice calls over LTE
Low Power Consumption: Energy-efficient design with <12W power draw
Wide Operating Range: Functions in 0°C to +40°C environments
Enhanced Security: Supports WPA2-PSK encryption, firewall, and VPN (PP2P/L2TP/IPSec)
Easy Management: Web-based interface for simple setup and monitoring
