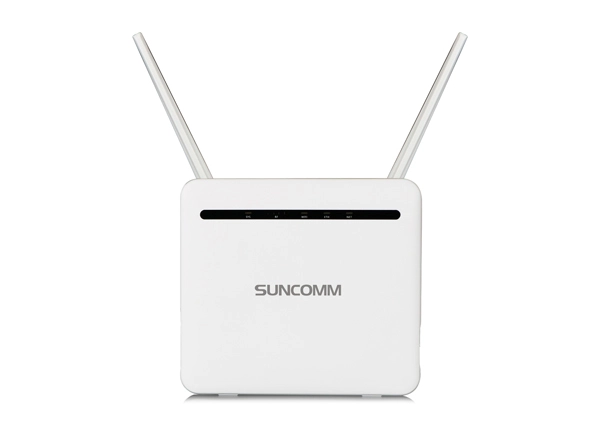

SC818 is a wireless gateway integrating LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services.
SC818 supports Cat 6 and multi-port user access. It is a multi-user 4G wireless gateway suitable for home or small office environment. It gives users access to the Internet.
| Technical Standard | Compatible with FDD-LTE, TDD-LTE, WCDMA Default IEEE802.11 a/b/g/n/ac |
| Dimension | 174mm*156.8mm*66.5mm |
| Weight | 281.7g without battery 338g with battery |
| Operating Frequency | EA: FDD: B1/B3/B5/B7/B8/B20/28/B32 TDD: B38/40/41/42/43 WCDMA:B1/B5/B8 SA: FDD: B2/B4/B5/B7/B8/B20/B28/B32/B66 TDD: B38/B40/B41/B42/B43 WCDMA: B2/B4/B5 |
| CA | Support DL 2CA |
| Wi-Fi | 2.4G&5GHz, Wi-Fi 2*2 MIMO, DBDC IEEE802.11 a/b/g/n/ac |
| Maximum Data Throughput | LTE CAT6 FDD-LTE(DL/UL) 300Mbps/50Mbps TDD-LTE(DL/UL) 223Mbps/20.4Mbps DC-HSPA+ (DL/UL) 42/5.76Mbps |
| Receive Diversity | Support Receive Diversity |
| BB Chipset | ASR1828 |
| Wi-Fi Chipset | RTL8192FR+QCA6174A-1 |
| Memory | Modem: 1Gb+1Gb |
| Power Consumption | Maximum Power Consumption: < 12W Typical Power Consumption: < 8W |
| Power Voltage | DC12V/1A |
| USIM/SIM | 1*USIM Card Slot (2FF, SIM card) 3V SIM card and 1.8V SIM card. support SIM/USIM/UIM, standard 6 PIN SIM card interface eSIM is optional |
| LED | Power Indication LED RF Signal Strength LEDs Wi-Fi/WPS Indication LED WAN/LAN Status LED Internet Status LED |
| Antenna | 2*internal Wi-Fi antenna 2*internal LTE antenna 2*external LTE antenna (Optional) |
| Buttons | Power, WPS, Reset |
| Battery | 2920mAh (Optional) |
| Ethernet | 1*WAN+3*LAN, 10BaseT/100Base/1000Base automatic adaptive port |
| SW Update | TR069 & FOTA & Local |
| Voice | VoLTE & VOIP & CS |
| IPv4/IPv6 | Support |
| Reset | Pinhole |
| ESD | ESD Protection circuit; Contact±6KV, Air±8KV |
| VPN Pass Through | PP2P/L2TP/IPSec |
| Operating Temperature | Normal: 0℃ to +45℃ |
| Storage Temperature | -20℃ to +70℃ |
| Humidity | 5% ~ 95% |
Support LTE FDD/TDD, WCDMA
Category 6: DL 300 Mbps/UL 50 Mbps
Support LTE 3GPP Release 10, WCDMA Release 8
Support Europe, Middle East, Africa, Southeast Asia and Latin America
Wi-Fi: 2.4G&5GHz, Wi-Fi 2*2 MIMO, DBDC
IEEE802.11 a/b/g/n/ac
Maximum Users: 32
1*WAN+3*LAN, 10BaseT/100Base/1000Base automatic adaptive port
Multi APN function (Optional) for Data, TR-069 services (Optional)
Routing mode: NAT enable (Default) / IP pass-through (Optional)
VPN client service (L2TP, PPTP)
