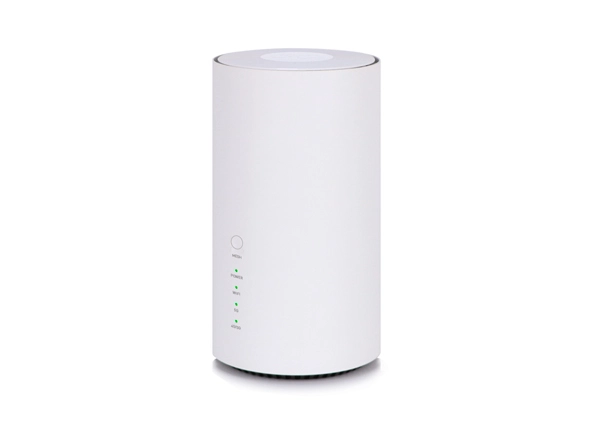

SDX65 is a wireless gateway integrating NR/LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services.
SDX65 is a multi-user 5G wireless gateway suitable for home or small office environment. it supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi-enabled devices can access the internet. 5G CPE can be used to set up specific networks and share network connections anywhere via cellular connections or Ethernet connection.
SDX65 adopts Qualcomm SDX65 platform, supports 3GPp Release 16, terminal downlink up to 4.9Gbps, and uplink up to 0.9Gbps. Support Qualcomm WiFi6 2.4G and 5.8 DBDC up to 3Gbps.
| Technical Standard | Compatible with LTE, Sub6, 802.11 a/b/g/n/ac/ax |
| Frequency (EA) | EA version: 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n77/n78 LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43 UMTS: B1/B5/B8 |
| Frequency (SA) | SA version: 5G: n2/n5/n7/n8/n12/n13/n28/n66/n38/n40/n41/n77/n78 LTE: B2/B4/B5/B7/B8/B12/B13/B28/B66/B38/B40/B41/B42/B43 UMTS: B2/B4/B5/B8 |
| Frequency (NA) | NA version: 5G: n2/n5/n12/n 13/n14/n25/n26/n29/n30/n41/n48/n66/n71/n77/n78 LTE: B2/B4/B5/B12/B13/B14/B25/B26/B29/B30/B41/B42/B43/B48/B66/B71 UMTS: B1/B2/B4/B5/B8 |
| WIFI | 2.4GHz&5.8GHz, WIFI 2*2 MIMO, 802.11 a/b/g/n/ac/ax, DBDC AX3000 |
| Maximum Data Throughput | 5G SA NSA mode • 5G NR: (DL/UL) 4.9Gbps/900Mbps • LTE: (DL/UL) 1.6Gbps/200Mbps |
| Receive Diversity | Support Receive Diversity |
| MIMO | DL 4x4 MIMO |
| Chipset | Qualcomm SDX65+WCN6856 |
| Memory | Modem: 8+8Gbit |
| Power Consumption | <18W |
| Power Voltage | DC12V/1.5A |
| USIM/SIM | 4FF SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot |
| LED | Power Indication; Wi-Fi Indication; 5G Indication LED; 4G Indication LED |
| USB | USB 2.0 |
| Antenna | LTE/NR Antenna*8, Wi-Fi*2 , N41/77/78/79 11dBi High Gain, Smart antenna selection, 2*TS-9 external antenna is optional (support band n38/n40/n41/n77/n78) |
| Buttons | POWER, Reset, WPS |
| Ethernet | 1*WAN+1*LAN • 2*1000Base automatic adaptive port (default) • 1*2.5Gbps + 1*1Gbps port (optional) |
| VOICE | 1*RJ11, support VOIP/VOLTE/VONR(optional) |
| Reset | Pinhole |
| ESD | ESD Protection circuit; Contact±8KV, Air±10KV |
| HTTP | Support |
| Operating Temperature | Normal: 0℃~ +45℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Humidity | 5%~ 95% |
5G LTE
4.9Gbps/0.9Gbps
Wi-Fi 6
802.11 a/b/g/n/ac/ax, DBDC
Up to 3Gbps
Ethernet
10BaseT/100Base/1000Base automatic adaptive port 2.5Gbps Port for high speed user
RJ11
Connect to the telephone
