SDX72 is a wireless gateway integrating NR/LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services.

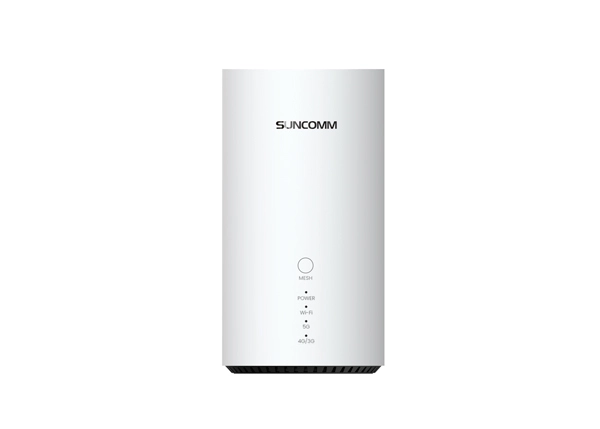

SDX72 is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi-enabled devices can access the Internet. 5G CPE can be used to set up specific networks and share network connections anywhere via cellular connections or Ethernet connection.
SDX72 adopts Qualcomm SDX72 platform, supports 3GPP Release 17, terminal downlink up to 4Gbps, and uplink up to 0.9Gbps. Support the newest Qualcomm WiFi7 solution, the Wi-Fi feature can support 2.4G and 5.8 DBDC up to 6.4Gbps, and also support Easy mesh R4 function, can build a network connect with other Wi-Fi router.
| Technical Standard | Compatible with LTE, Sub6, 802.11 a/b/g/n/ac/ax/be |
| Frequency (EA) | EA version: [5G NR]: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78/n79 [LTE]: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43/B71 [UMTS]: B1/B3/5/8 |
| Frequency (SA) | SA version: [5G NR]: n2/n5/n7/n8/n12/n13/n28/n38/n40/n41/n66/n77/n78 [LTE]: B2/B4/B5/B7/B8/B12/B13/B28/B38/B40/B41/B42/B43/B66 [UMTS]: B2/B4/B5/B8 |
| Frequency (NA) | NA version: [5G NR]: n2/n5/n12/n13/n14/n25/n26/n29/n30/n41/n48/n66/n71/n77/n78 [LTE]: B2/B4/B5/B12/B13/B14/B25/B26/B29/B30/B41/B42/B43/B48/B66/B71 [UMTS]: B1/B2/B4/B5/B8 |
| WIFI | WiFi7 2.4GHz&5GHz, WIFI 2*2 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be3600 2.4GHz&5GHz, WIFI 2*2 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be5000 2.4GHz&5GHz, WIFI 4*4 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be7200(optional) 2.4GHz&5GHz&6GHz, WIFI 4*4 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be11000(optional) Easy mesh R4 is supported |
| Maximum Data Throughput | 5G SA NSA mode • 5G NR: (DL/UL) 4Gbps/900Mbps • LTE: (DL/UL) 1.6Gbps/200Mbps |
| Receive Diversity | Support Receive Diversity |
| MIMO | DL 4x4 MIMO |
| Chipset | Qualcomm SDX72 |
| Memory | Modem: 16GB emmc+8Gb LPDDR4 |
| Power Consumption | <24W |
| Power Voltage | DC12V/2A |
| USIM/SIM | 4FF SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot |
| LED | Power Indication; Wi-Fi Indication; 5G Indication LED; 4G Indication LED |
| USB | USB 2.0 |
| Antenna | LTE/NR Antenna*6, Wi-Fi*2, N41/77/78/79 8dBi High Gain, Smart antenna selection, 2*TS-9 external antenna is optional (support band n38/n40/n41/n77/n78), WIFI 4 antenna is optional |
| Buttons | POWER, Reset, WPS (easy mesh) |
| Ethernet | 1*WAN+1*LAN • 2*1000Base automatic adaptive port (default) • 1*2.5Gbps + 1*1Gbps port (optional) |
| VOICE | • 1*RJ11, support VOIP/VOLTE/VONR (optional) |
| Reset | Pinhole |
| NFC | Supported NFC to connect Wi-Fi |
| Battery | 3000mah inset battery is optional |
| ESD | ESD Protection circuit; Contact±8KV, Air±10KV |
| HTTP | Support |
| Operating Temperature | Normal: 0℃~ +45℃ |
| Storage Temperature | -20℃ ~ +70℃ |
5G LTE
3GPP Release 17 4Gbps/0.9Gbps
Wi-Fi 7
802.11 a/b/g/n/ac/ax/be, DBDC 3.6G~10.1Gbps Easy mesh R4
Ethernet
10BaseT/100Base/1000Base automatic adaptive port 2.5Gbps Port for high speed user
RJ11
Connect to the telephone
