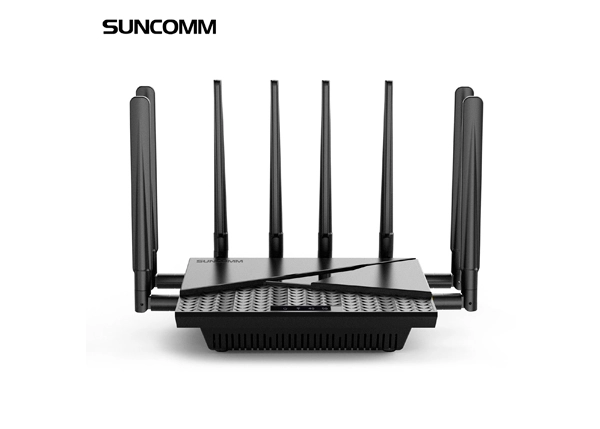

5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.
The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.
The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
| Model | SE05 |
| CPU | IPQ5018+SDX62 |
| WiFi Frequency | 2.4G&5G |
| WiFi Standard | 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz: 802.11a/n/ac/ax 2T2R MIMO |
| WiFi | 2.4GHz: 600Mbps, 5GHz: 2400Mbps |
| 5G NR | 3GPP Release 16 NSA/SA operation, Sub-6 GHz |
| 5G Network Mode | NSA/SA |
| 5G/4G Data Rate | 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE: Down 1.0 Gbps；UP 200 Mbps |
| 5G Frequency Bands | 5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 5G NR SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 MIMO Downlink：4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 |
| 4G&3G Frequency Bands | Downlink Cat 19/ Uplink Cat 18 LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 MIMO DL: 4 × 4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/ B29/B30/B66/B41/B42/B43/B48/B71 WCDMA B1/ 2/ 4/ 5/ 8/ 19 |
| Modulation Mode | 5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM WIFI: 1024-QAM / OFDMA |
| Dimension | 108X108X216MM |
| Interface | 2*10/100M/1000 LAN 1*10/100M/1000/2500 WAN 1*12V 2A DC Power Input 1 Reset Button 1 SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card: internal) 1 Breathing Light Button 1 MESH Networking Button |
| Network Extension | MESH |
| Reset | Reset（Long press 10 seconds to restore the factory settings） |
| MESH | Networking: short press (blue networking light flashes) |
| LED Indicator | Power, Breathing Light, 4G Signal, 5G Signal, WiFi Signal |
| Power Consumption | ＜24W |
| Environment | Operating Temperature：-20℃～+50℃ Storage Temperature:-40℃～+70℃ Humidity：5％～95％（Non condensation） |
| Weight | 1.6KG（Includes color box accessories） |
5G NR
Qualcomm™SDX62 modem
WiFi6
AX3000
Support 160M bandwidth
2.5G Port
High-speed interface
MESH
Support MESH networking
