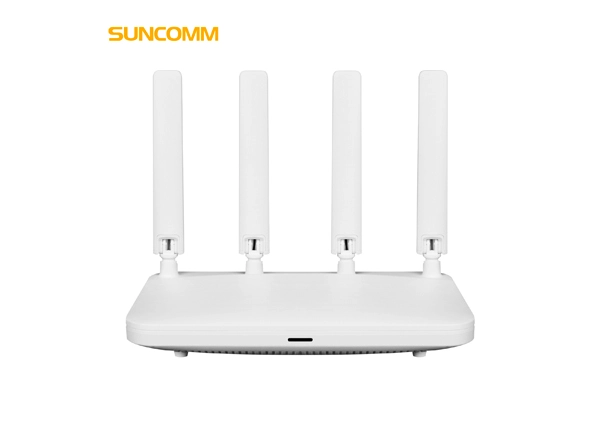

The WR1800H is an enterprise-grade WiFi6 router delivering 1800Mbps dual-band speeds (573Mbps @2.4GHz + 1201Mbps @5.8GHz) for 128+ concurrent users. Featuring a WiFi6 MIMO RF chip, it ensures wider coverage, faster speeds, and lower latency with OFDMA/MU-MIMO and BSS Color for high-density environments. Advanced HNAT hardware enables 2Gbps wired forwarding, while MESH, VPN, and IPTV support handle complex networks. Robust security includes WPA3, MAC/IP filtering, and DDOS protection. Easy setup and remote management make it ideal for offices and smart homes.
| Category | Parameter | Specification |
| Hardware | Main Chip | MT7621A/MT7905DAN/MT7975DN High performance enterprise grade chips |
| CPU | MIPS dual-core 880MHz | |
| Memory | 256MB | |
| Flash | 128MB | |
| Wireless | 2.4GHz | 802.11b/g/n/ax 2×2 (573Mbps) |
| 5.8GHz | 802.11a/n/ac/ax 2×2 (1201Mbps) | |
| Features | 1024QAM, OFDMA, MU-MIMO, BSS Color, STBC, LDPC, Beamforming | |
| Interfaces | Network | 1×Gigabit WAN, 3×Gigabit LAN |
| Power | DC 12V/1A (5.5×2.1mm plug) | |
| Controls | Buttons | Reset (6s), WPS |
| Indicators | Status LEDs | |
| Antennas | 2.4GHz | 2×5dBi stick |
| 5GHz | 2×5dBi stick | |
| Environment | Temp | Operating: -10℃~45℃ |
| Storage: -20℃~70℃ | ||
| Humidity | 10%~90% (operating), 5%~90% (storage) | |
| Physical | Dimensions | 262×177×180mm (with antennas) |
| WiFi Spec | Frequency | 2.4G: 2.4-2.4835GHz |
| 5G: 5.15-5.825GHz | ||
| Channels | 2.4G: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 | |
| 5G: 36, 40, 44, 48, 52, 60, 64, 149, 153, 157, 161, 165 | ||
| Modulation | DSSS/OFDM/OFDMA (BPSK to 1024QAM) | |
| Speed | 11b:11M, 11g:54M, 11n:300M, 11ac:864.7M, 11ax:573M(2.4G)/1201M(5G) | |
| Software | Modes | Router/Bridge |
| Capacity | 128 users | |
| Management | WEB/TR069 remote | |
| Features | Mesh, QoS, Parental Control, VPN, Firewall |
WR1800H is a high-performance enterprise grade WiFi6 router product that supports 802.11ax technology, operating in the 2.4G&5.8G wireless frequency band and meeting the needs of 128 people simultaneously accessing the internet wirelessly at high speed;
Supports 802.11AX protocol, can provide 2.4G 573Mbps+5G 1201Mbps wireless access speed, and the entire machine can provide 1800Mbps wireless access speed;
External professional WiFi6 MIMO RF chip ensures wider signal coverage, higher speed, and longer transmission distance;
Supports fast forwarding of HNAT hardware, with a wired bidirectional forwarding performance of 2Gbps for WAN ports;
It endows MU-MIMO, OFDMA, BSS Color, high speed and better coverage range, low latency characteristics, and provides better wireless network performance and user experience in high-density network environments and scenarios with a large number of connected devices;
Supports rich network functions such as routing mode, bridge mode, IPV4/IPV6, IPTV, relay, MESH, DDNS, VPN client, port mapping/DMZ, traffic control, etc., making it easy to cope with various complex network scenarios;
Support security protection such as WPS, WPA/WPA2/WPA3, SSID masking, visitor network, MAC filtering, IP filtering, URL control, and DDOS attack prevention, ensuring the security of user data at all times;
Built in quick setup wizard, no need for professional knowledge, easy to use router WiFi for internet access;
Continuously updating products, optimizing features and performance, ensuring responsiveness to various network environments and enhancing user experience.
