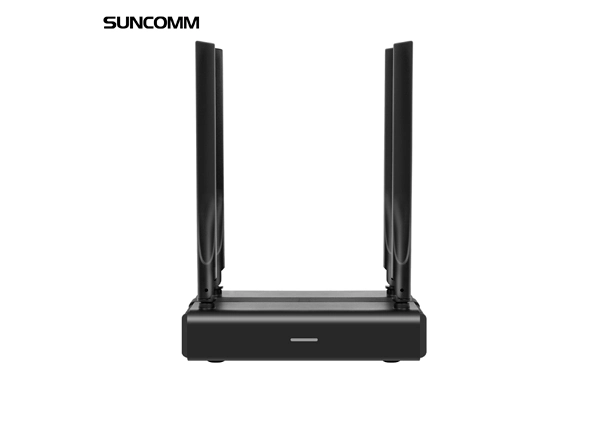

The WR1800K is an enterprise-grade WiFi6 router delivering 1800Mbps dual-band speeds (573Mbps @2.4GHz + 1201Mbps @5.8GHz) for 128+ concurrent users. Powered by a high-performance MT7621A chipset, it features OFDMA/MU-MIMO and BSS Color for low-latency performance in dense environments. With 4x external antennas and HNAT hardware acceleration (2Gbps wired forwarding), it ensures extended coverage and fast connectivity. Advanced security includes WPA3 encryption and DDOS protection, while MESH, VPN, and IPTV support handle complex networks. Easy setup and web/TR069 management make it ideal for offices and smart homes.
| Category | Parameter | Specification |
| Core Hardware | Chipset | MT7621A + MT7905DAN + MT7975DN (High performance enterprise grade chips) |
| CPU | MIPS Dual-Core 880MHz | |
| Memory | 256MB RAM + 128MB Flash | |
| Connectivity | Wireless Standards | 2.4GHz: 802.11b/g/n/ax (573Mbps) • 5.8GHz: 802.11a/n/ac/ax (1201Mbps) |
| WiFi Features | 1024QAM • OFDMA • MU-MIMO • Beamforming • BSS Color | |
| Ports | 1×Gigabit WAN + 3×Gigabit LAN | |
| Antennas | Configuration | 2×5dBi (2.4GHz) + 2×5dBi (5GHz) External Stick Antennas |
| Power | Input | DC 12V/1A (5.5×2.1mm barrel jack) |
| Environment | Temperature Range | Operation: -10℃~45℃ • Storage: -20℃~70℃ |
| Humidity | Operation: 10%~90% • Storage: 5%~90% (Non-condensing) | |
| Physical | Dimensions | 262×177×180mm (Including Antennas) |
| RF Specs | Frequency Bands | 2.4GHz: 2.4-2.4835GHz • 5GHz: 5.15-5.825GHz (UNII-1/2/3) |
| Channels | 2.4G: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 5G: 36, 40, 44, 48, 52, 60, 64, 149, 153, 157, 161, 165 | |
| Performance | Max Throughput | 2.4G: 573Mbps (11ax) • 5G: 1201Mbps (11ax) |
| Management | Control Buttons | Reset (6s hold) • WPS |
| Remote Management | Web UI • TR069 | |
| Software | Operation Modes | Router • Bridge |
| User Capacity | 128 Concurrent Connections | |
| Advanced Features | Mesh Networking • QoS • Parental Controls • VPN (PPTP/L2TP) • IPv6 |
WR1800K is a high-performance enterprise-grade WiFi6 router product that supports 802.11ax technology, operating in the 2.4G&5.8G wireless frequency band and meeting the needs of 128 people simultaneously accessing the internet wirelessly at high speed;
Supports 802.11AX protocol, can provide 2.4G 573Mbps+5G 1201Mbps wireless access speed, and the entire machine can provide 1800Mbps wireless access speed;
External professional WiFi6 MIMO RF chip ensures wider signal coverage, higher speed, and longer transmission distance;
Supports fast forwarding of HNAT hardware, with a wired bidirectional forwarding performance of 2Gbps for WAN ports;
It endows MU-MIMO, OFDMA, BSS Color, high speed and better coverage range, low latency characteristics, and provides better wireless network performance and user experience in high-density network environments and scenarios with a large number of connected devices;
Supports rich network functions such as routing mode, bridge mode, IPV4/IPV6, IPTV, relay, MESH, DDNS, VPN client, port mapping/DMZ, traffic control, etc., making it easy to cope with various complex network scenarios;
Support security protection such as WPS, WPA/WPA2/WPA3, SSID masking, visitor network, MAC filtering, IP filtering, URL control, and DDOS attack prevention, ensuring the security of user data at all times;
Built in quick setup wizard, no need for professional knowledge, easy to use router WiFi for internet access;
Continuously updating products, optimizing features and performance, ensuring responsiveness to various network environments and enhancing user experience.
