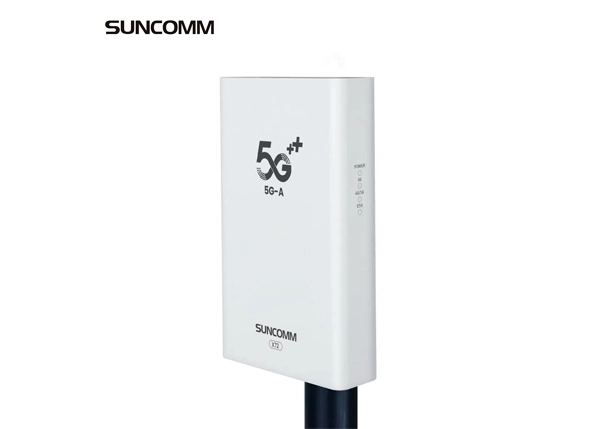

SUNCOMM X72 outdoor CPE is a high-speed packet access FWA product. It is a multi-mode wireless terminal for home broad band, Office and industrial park.
You can connect the X72 with the RJ45 interface of indoor CPE, or connect the X72 with acomputer.
In the service area of the 5G-Sub6/LTE/UMTS network, you can surf the Internet andsend/receive emails cordlessly. The X72 is fast, reliable and easy to operate.
| Basic Information | Dimension | 186*111*35 mm |
| Weight | About 1000g | |
| Color | White | |
| Air Interface | Technical Standard | 5G NR Sub-6G, LTE, WCDMA |
| Operating Frequency | 5G NR Sub-6G SA&NSA: EA version [5G NR]: n1/n3/n5/n7/n8/n20/n28/n71/n38/n40/n41//n75/n76/n77/n78/n79 [LTE]: B1/B3/B5/B7/B8/B20/B28/B32/B71/B38/B40/B41/B42/B43 [UMTS]: B1/B5/B8 [GPS]: L1/L5 (Optional) LA version [5G NR]: n2/n5/n7/n8/n12/n13/n28/n66/n38/n40/n41/n77/n78 [LTE]: B2/B4/B5/B7/B8/B12/B13/B28/B66/B38/B40/B41/B42/B43 [UMTS]: B2/B4/B5/B8 [GPS]: L1/L5 (Optional) NA version [5G NR]: n2/n5/n12/n13/n14/n25/n26/n29/n30/n66/n71/n41/n48/n77/n78 [LTE]: B2/B4/B5/B12/B13/B14/B25/B26/B29/B30/B66/B71/B41/B42/B43/B48 [UMTS]: B2/B4/B5/B8 [GPS]: L1/L5 (Optional) | |
| Performance | 5G Peak Data Throughput (theoretical value) | sub6G: DL: BW 200MHz 4Gbps UL: BW 100MHz 0.9Gbps LTE: CAT19 DL: 1.6Gbps UL: 200Mbps |
| Hardware | Receive Diversity | Support |
| MIMO | Support DL 4x4 MIMO | |
| Internal Memory | 4GB+4Gb | |
| BB Chipset | Qualcomm SDX72 | |
| USIM | 1*4FF SIM (nano card) | |
| Power consumption | <20W | |
| Ethernet | 2.5G LAN*1 | |
| Power | POE(nonstandard default) 48V0.35A | |
| LED | Power Indication 5G network Indication 4G network Indication ETH status | |
| USB | USB 2.0 micro (for Debug only) | |
| Antenna | Internal Antenna: 5G/4G, 11dBi high gain antenna | |
| Buttons | Reset hole | |
| Bluetooth | BLE4.0 to aid installation | |
| GPS | L1/L5(Optional) | |
| ESD | ESD Protection circuit; 8kV contact / 10kV air discharge | |
| Software | SW Update | Local Update/FOTA/WebUI |
| IP-Passthrough | Support | |
| IPv4/IPv6 | Support | |
| UI | WebUI | |
| Data Statistics | Support | |
| Automatic APN Match | Support | |
| Install | Pole/Wall/Past on window/Beside on window | |
| Waterproof level | IP67 | |
| Environment | Operating Temperature | -40℃ ~ +50℃ |
| Storage Temperature | -40℃ ~ +70℃ | |
| Humidity | 5%~ 95% |
Frequency Band
3Gpp Release 17
5G sub6 NSA/SA
DL up to 4Gbps
UL up to 0.9Gbps
Ethernet
2.5Gbps Ethernet POE
Waterproof Level
IP67
SW Update
TR069
FOTA
