Powered by Qualcomm SDX12 CAT6 modem with MTK7621AT processor for strong performance.
Provides up to 300Mbps downlink and 50Mbps uplink on 4G LTE.
Dual-band WiFi 6 (2.4GHz and 5GHz) delivers 300Mbps + 866Mbps speeds.
Features 2T2R MIMO on both 2.4GHz and 5GHz for stable wireless coverage.
Includes 1 Gigabit LAN port and 48V PoE power supply option.

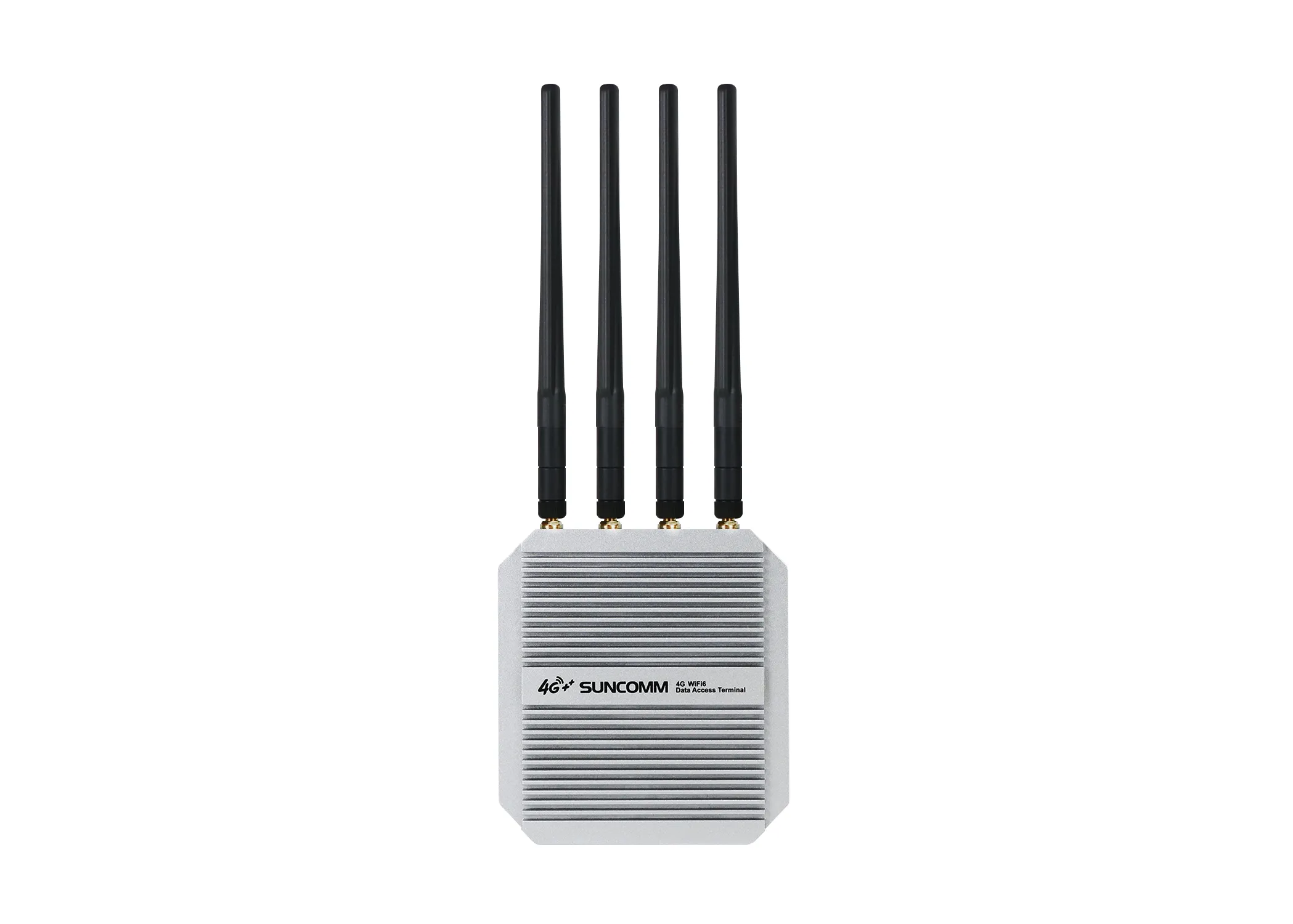

| Model | CP406 |
| CPU | MTK7621AT+Qualcomm Snapdragon X12（cat6） |
| WiFi Frequency | 2.4G&5G |
| WiFi Standard | 2.4G:802.11b/g/n 2T2R MIMO, 5.8GHz：802.11a/n/ac 2T2R MIMO |
| WiFi | 2.4GHz :300Mbps ,5GHz :866Mbps |
| 4G&3G Frequency Bands | |
| North America | LTE FDD： B2/4/5/7/12/13/14/17/25/26/29/30/66/71 |
| LTE TDD： B41(194M)/42/43/46/48 | |
| WCDMA： B2/4/5 | |
| Asia, Europe, Australia | LTE FDD： B1/3/5/7/8/20/28/32 |
| LTE TDD： B38/40/41(120M) | |
| WCDMA： B1/3/5/8 | |
| Interface | 1*1000Mbps LAN |
| 1*48V PoE Power Supply | |
| 1 Reset Button | |
| Reset | Reset（Long press 10 seconds to restore the factory settings） |
| LED Indicator | Power, Breathing Light, 4G Signal, WiFi Signal |
| Environment | Operating Temperature：-20℃～+50℃ |
| Storage Temperature:-40℃～+70℃ | |
| Humidity：5％～95％（Non condensation） | |
| Weight | 1.35KG（Includes color box accessories） |
