Using Qualcomm X75 technology, the device supports 3CC to 6CC carrier aggregation with 300 MHz bandwidth for speeds up to 6.1 Gbps down and 900 Mbps up.Supports Wi-Fi 6, delivering speeds up to 3000 Mbps across the 2.4 GHz and 5.8 GHz frequency bands.The enclosure is made from a durable ABS+PC plastic blend, offering excellent impact resistancheat tolerance, and a sleek, professional finish.

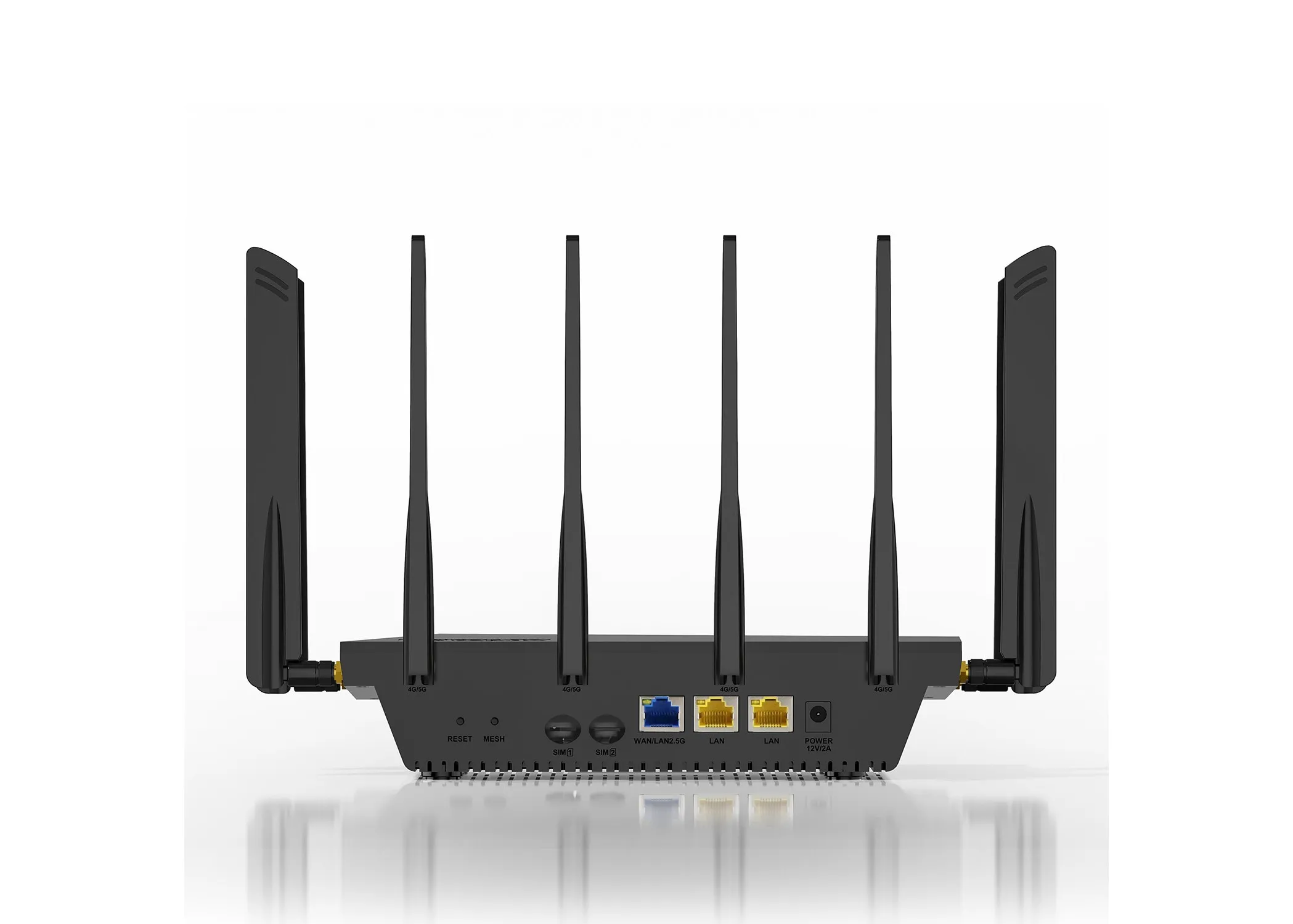

Offers versatile wired connectivity via a 2.5G WAN/LAN interface along with two Gigabit LAN ports.
Equipped with LTE/NR and four Wi-Fi antennas, offering maximum gain performance of up to 8 dBi.
BandLock : Keeps the router fixed on a chosen frequency band, helping maintain stable performance.
CellLock : Allows the device to connect only to a specific base station for more consistent signal quality.
AT Commands : Lets you control and configure the module directly by sending command instructions.
IMEI Change : Gives experienced users the ability to modify the IMEI when required.
IP Passthrough : Assigns the public IP address directly to one LAN-connected device for direct network access.
VPN : Uses an encrypted tunnel to protect data traffic and maintain online privacy.
As a specialized 5G router company, we are ready to offer more solutions.
| Technical Parameters | ||||
| Model： | SE06 Ultra | |||
| 5G Module： | FM190W-GL / RM551E-GL | |||
| Ethernet: | 1* WAN/LAN 2.5Gbps 2* LAN 1Gbps 2* Nano SIM card slots | |||
| 5G NR： (SE06 Ultra) | 5G Sub-6 NSA/SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48 /n66/n70/n71/n75/n77/n78/n79/n91/n92/n93/n94 | |||
| 5G mmW: n257/n258/n260/n261 | ||||
LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/ B70/B71/B34/B38/B39/B40/B41/B42/B43/B48/B46 | ||||
| WCDMA: B1/B2/B4/B5/B8/B19 | ||||
| 3GPP Release 17 NSA/SA operation, Sub-6 GHz | ||||
| Data Rate | FR1+FR2 | 10Gbps(DL) / 3.38Gbps(UL) | ||
| NR SA | 6.18Gbps(DL) / 900Mbps(UL) | |||
| NR NSA | 4.92Gbps(DL) / 555Mbps(UL) | |||
| LTE | 2.0Gbps(DL) / 211Mbps(UL) | |||
| WCDMA | 42Mbps(DL) / 5.76Mbps(UL) | |||
| Performance paremeter | ||||
| CPU | MT7981BA+MT7976CN+MT7531AE（Dual-core A53 1.3GHz） | |||
| WiFi 6 | 2.4G / 5G ，2.4GHz 2TR :600Mbps , 5GHz 2T2R :2402Mbps | |||
| Storage | 512MB DDR3 + 128MB SPI NAND FLASH | |||
| WiFi Standard | IEEE 802.11b、g、a、n、ac、ax，IEEE 802.3、u、x | |||
| Working mode | Router / Bridge | |||
| Wireless security | Wireless MAC address filtering 64/128 bit WEP encryption WPA-PSK、WPA2-PSK、WPA3-SAE、WPA/WPA2-PSK 、WPA2-PSK/WPA3-SAE WPS(PBC) | |||
| Other features | Wireless host status display | |||
| Wireless site scanning | ||||
| Seamless roaming between nodes | ||||
| Seamless roaming between bands | ||||
| WiFi settings | WiFi basic settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment). | |||
| Advanced settings (wireless client isolation, 802.11h, WMM multimedia acceleration). | ||||
| Multiple SSIDs (SSIDs, encryption methods, PWDs, and encryption algorithms) | ||||
| Button | Mesh (press 1 second). | |||
| Reset (press and hold for 5 seconds). | ||||
| LED Indicator | 5G, 4G, WIFI signal indicator, power indicator | |||
| Power supply | DC 12V/2A | |||
| Network settings | Data Switch, Roaming Switch, Mode Selection, Default APN Information, and APN Manual Configuration | |||
| FAILOVER switches: PPPOE, DHCP, and static | ||||
| 4G/5G band locking | ||||
| WiFi settings | WiFi name and password, wifi timing, channel bandwidth setting, power regulation, bridging function, OFDMA, Mesh | |||
| SMS feature | SMS sending and receiving, SMS center settings, USSD | |||
| Guest network | Configure the SSID, rate limit, and startup time limit of the guest network | |||
| Parental controls | Online device display, online time, restricted Internet time period, URL filtering configuration | |||
| Advanced settings | Working Mode, SIM PIN, Mobile Data Switch, Bandwidth Control, Sleep Mode, LED Control, Filter MAC Address, Firewall, Static Routing, DDNS, Virtual Server, DMZ Host, UPnP, TR069 Settings, VPN(L2TP/PPTP/Wireguard/GRE/IPsec/OpenVpn),IMEI Modify,Zerotier,Smart QoS,Firewall, Domain ACL,UPnP,Remote web | |||
| System settings | System Status, Time Setting, Password Management, Configuration Management, Firmware Upgrade, Scheduled Restart, System Log, LAN Setting, DHCP Binding, Reboot & Reset, Remote Management | |||
| Use environment | Operating temperature: -20°C to 50°C | |||
| Storage temperature: -40°C to 70°C | ||||
| Operating humidity: 10% to 90% RH non-condensing | ||||
| Storage humidity: 5% to 95% RH non-condensing | ||||
