Runs on Unisoc UIS7885 octa-core 2.7GHz CPU with 8T NPU, supporting Android 13.0 or HarmonyOS.
Comes with 6GB RAM and 128GB storage, expandable via TF card up to 512GB.
Dual-band WiFi supports IEEE 802.11 a/b/g/n/ac for stable wireless access.
Works with 3G, 4G LTE, and 5G SA/NSA networks, including MIMO technology.
Bluetooth 5.0 and GNSS (GPS, Glonass, Galileo) deliver strong connectivity and positioning.
Equipped with a 10.1-inch IPS FHD display at 400 nits brightness.
9600mAh battery ensures long endurance, with Type-C fast charging and OTG support.
Features 48MP rear autofocus camera, 8MP front lens, and optional macro sub-camera.
Dual microphones and stereo speakers enhance audio clarity with noise reduction.
Includes multiple physical keys: power, volume, function, and scan buttons.
Optional 2D scanner supports barcode reading accuracy of ≥3mil.
NFC function covers ISO14443A/B and ISO15693 standards with 2–3cm range.
Independent Beidou positioning and RTK accuracy are supported.
Provides fingerprint unlocking plus gravity, gyroscope, and magnetic sensors.
Rugged build: IP67 rating, 1.2m drop resistance, and -10℃ to 50℃ operation.
| Performance paremeter | |

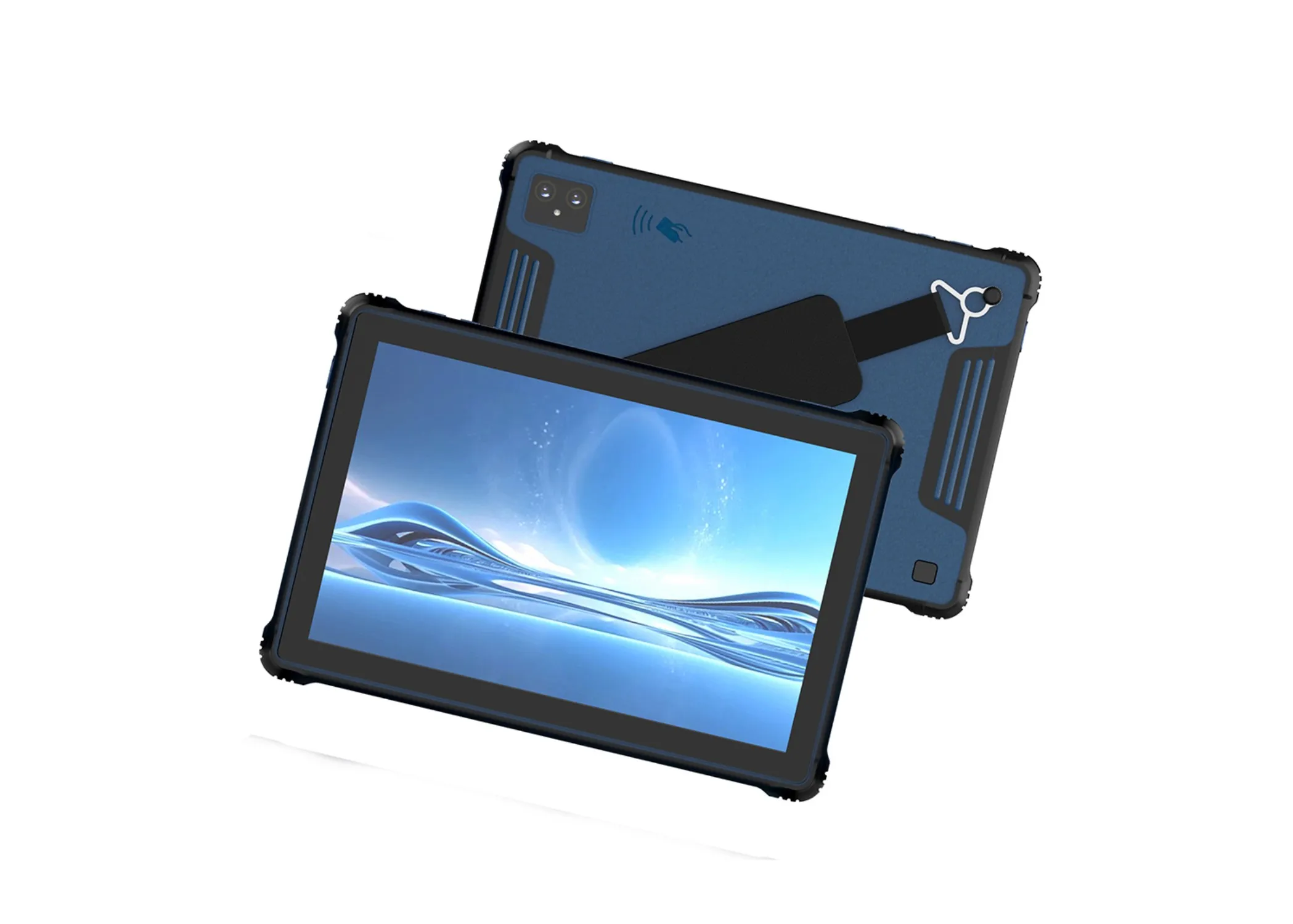

| Model | ST80 |
| CPU | Unisoc UIS7885，Octa-core 2.7Ghz，8T NPU |
| OS | Android 13.0/Harmony OS |
| RAM+ROM | 6+128GB |
| Extra Memory | Expansible through TF, support 512GB |
| Communication Transmission | |
| WiFi | Dual-band WIFI (2.4GHz/5Ghz) Support IEEE 802.11 a/b/g/n/ac |
| Wireless Wide Area Network | 3G WCDMA: B1/B5/B8 |
| 4G LTE MINO: B1/B3/B41 | |
| 4G LTE: B1/B3/B5/B8/B34/B38/B39/B40/B41 | |
| 5G MIMO: N1/N41/N78/N79 | |
| 5G SA/NSA: N1/N3/N5/N8/N28/N41/N78/N79 | |
| Bluetooth | BT5.0 |
| GNSS | GPS/Glonass/Galileo |
| Physical Parameter | |
| Size | 252mm*170mm*13.5mm |
| Weight | ＜650g |
| Display Screen | 10.1 inch IPS FHD screen（1200*1920）、400nits |
| Touching Screen | 10 point G+G capacitive screen |
| Battery Capacity | 3.8V/9600mAh |
| Interface | Nano-SIM*2、TF*1(2/3） |
| Type-C 、support OTG、support Power Delivery | |
| 12pins Pogo Pin | |
| Audio | 2W Stereo double speakers |
| Double MIC、support noise reduction | |
| Camera | Front 8.0MP |
| Rear 48.0MP、autofocus camera with LED flash | |
| Rear Macro sub camera 8.0MP（optional） | |
| Notify | motor |
| Side Key | Power button、SCAN button、Volume button+、Volume button-、Fn |
| Sensor | Gravity sensor/Gyroscope sensor/ Magnetic sensor |
| Optional Function | |
| 2D Scanning Engine | Scanning Accuracy ≧3mil |
| NFC | Frequency：13.56MHz |
| Protocol standard：ISO14443A/B,ISO15693，NFC | |
| Label standard：M1(S50、S70)、CPU、NFCtags | |
| Read-write distance：2-3cm | |
| Independent Beidou | Support independent Beidou positioning, RTK accurate positioning |
| Fingerprint | Support fingerprint unlocking |
| Environmental Parameter | |
| Operating Temperature | -10℃-50℃ |
| Storage Temperature | -40℃-70℃ |
| Environment Humidity | 5% RH-95% RH(No condensation) |
| Ingress Protection | IP67 |
| Droping Height | 1.2m |
| Accessories | |
| Standard Accessories | Power adapter*1、USB data line*1、Manual*1、Wrist strap*1 |
