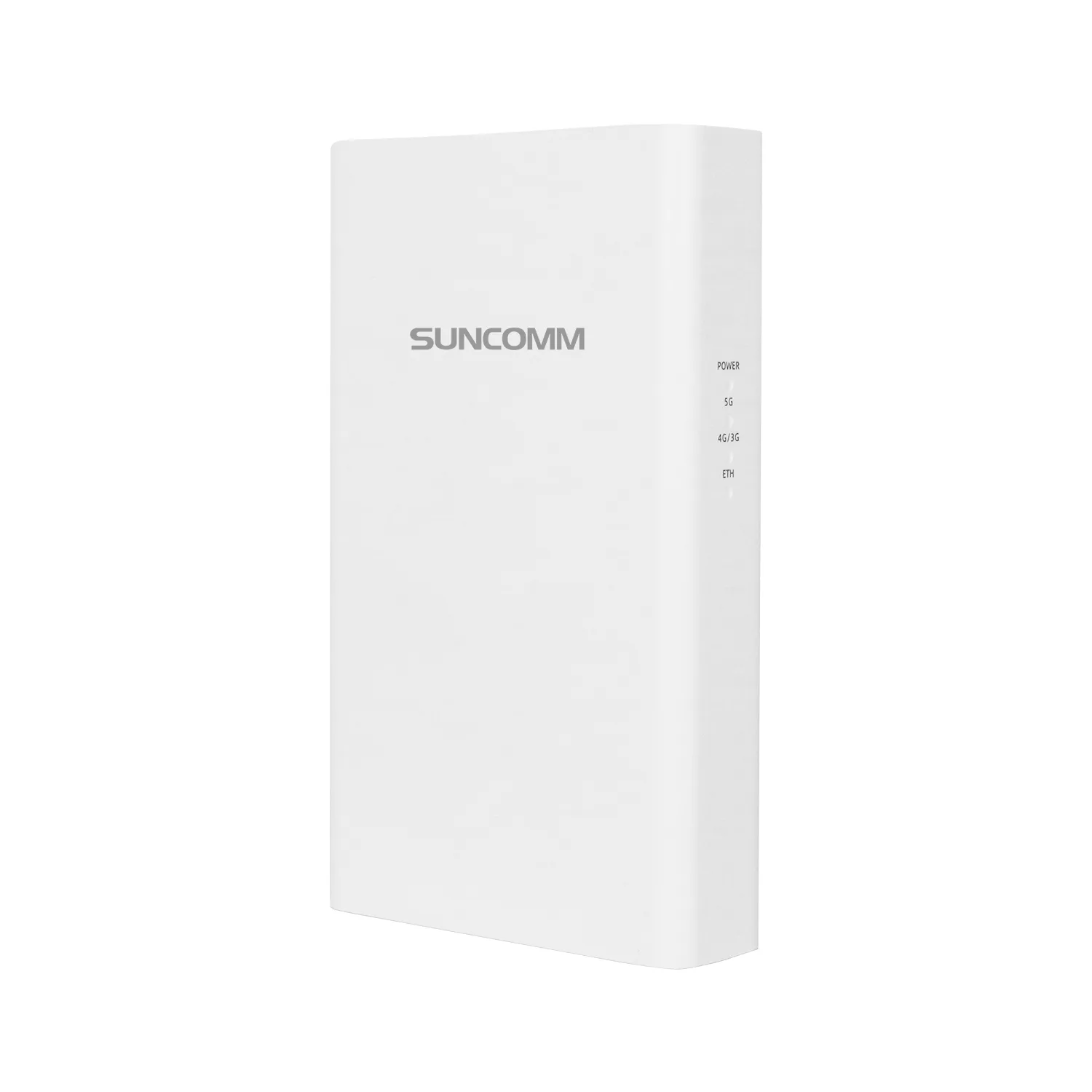

Features a high-performance Qualcomm SDX62 chipset with 4x4 MIMO technology.
Supports 5G Sub-6G with peak download speeds up to 2.4 Gbps and comprehensive multi-mode connectivity.
Compact outdoor design with IP65 rating for weather resistance in various environments.
Equipped with a single 2.5G Ethernet port powered by PoE for simplified installation.
Internal antenna design optimized for broad frequency coverage and efficient signal reception.
Operates reliably across extreme temperatures from -40°C to +50°C.
Supports flexible mounting options for both wall and pole installations.
Low power consumption, with maximum usage under 20W.
Provides local and FOTA software update capabilities for easy maintenance.
| Basic Information | Dimension | 186*111*35 mm |
| Weight | About 700g | |
| Color | White | |
| Air Interface | Technical Standard | 5G NR Sub-6G，LTE,WCDMA |
| Operating Frequency | 5G NR Sub-6G SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 | |
| LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE TDD: B34/B38/B39/B40/B41/B42 | ||
| WCDMA: Operating Frequency B1/B5/B8 | ||
| Performance | 5G Peak Data Throughput (theoretical value) | sub6G: DL:BW 100MHz 2.4Gbps UL: BW 100MHz 0.9Gbps |
| LTE：CAT19 DL：1.6Gbps UL:200Mbps | ||
| Hardware | Receive Diversity | Support |
| MIMO | Support DL 4x4 MIMO | |
| Internal Memory | 4Gb+4Gb | |
| BB Chipset | Qualcomm SDX62 | |
| USIM | 1*4FF SIM (nano card) | |
| Power consumption | Max power consumption <20W | |
| Ethernet | 2.5G LAN*1 | |
| Power | POE(nonstandard default) | |
| LED | Power Indication | |
| 5G network Indication | ||
| 4G network Indication | ||
| ETH status | ||
| USB | USB 2.0 micro (for Debug only) | |
| Antenna | Internal Antenna:5G/4G | |
| Gain： | ||
| 600MHz~960MHz: 0~2dBi | ||
| 1400MHz~1550MHz: 1~3dBi | ||
| 1710MHz~2690MHz: 2~4dBi | ||
| 3300MHz~5000MHz: 3~5dBi | ||
| Buttons | Reset hole | |
| Software | ESD | ESD Protection circuit; 8kV contact / 10kV air discharge |
| SW Update | Local Update/FOTA/WebUI | |
| IP-Passthrough | Support | |
| IPv4/IPv6 | Support | |
| UI | WebUI | |
| Data Statistics | Support | |
| Automatic APN Match | Support | |
| Install | Pole/Wall | |
| Environment | Waterproof level | IP65 |
| Operating Temperature | -40°C ~ +50°C | |
| Storage Temperature | -40°C ~ +70°C | |
| Humidity | 5%~ 95% |
