Qualcomm SDX75 chip and 4x4 MIMO technology,download speeds up to 7.1 Gbps and upload up to 1.25 Gbps.
Support 5G-A technology, The bandwidth can reach 300MHz.
Features industrial-grade IP67 waterproof and dustproof rating.Operates in extreme temperatures from -40°C to +50°C.

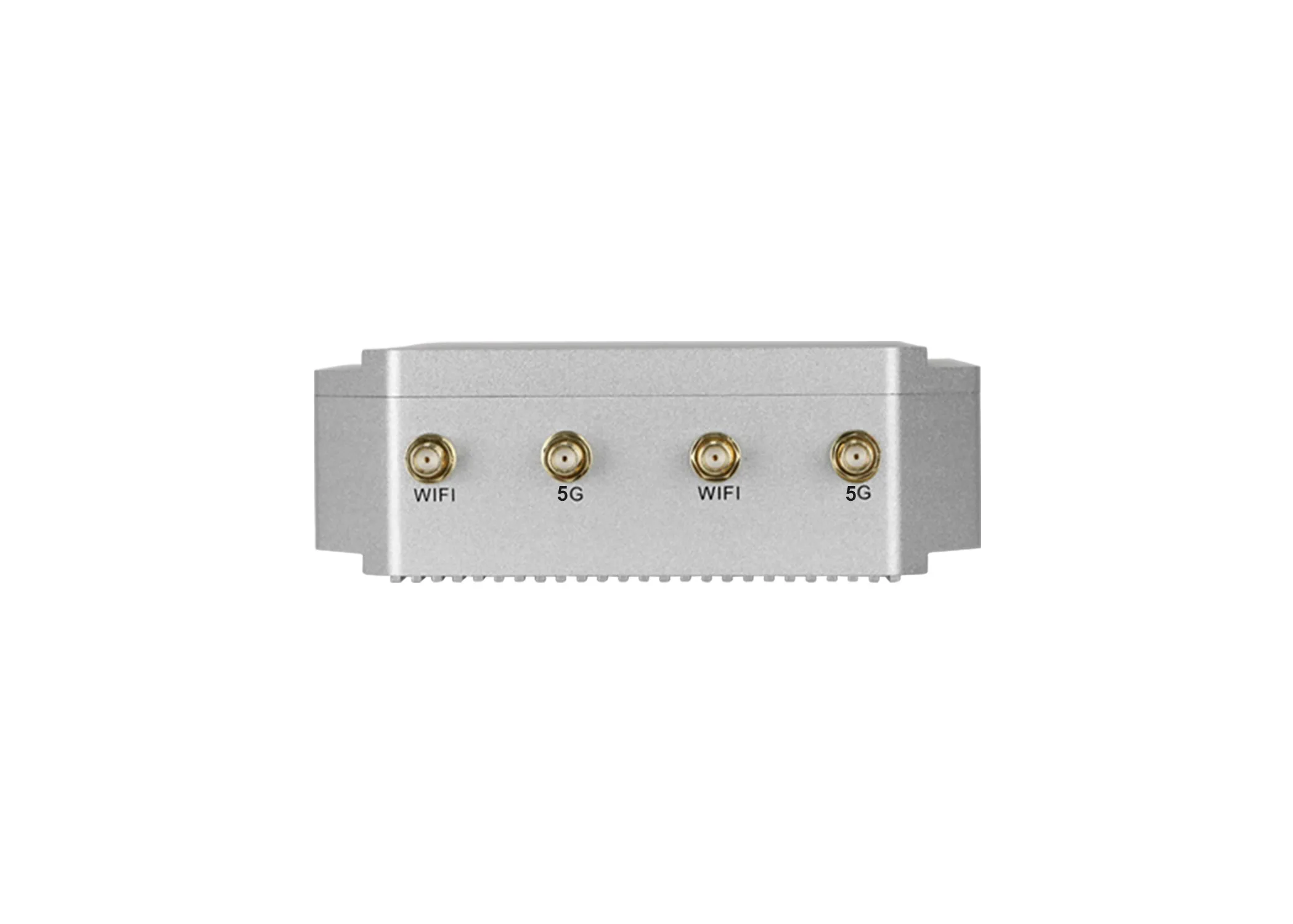

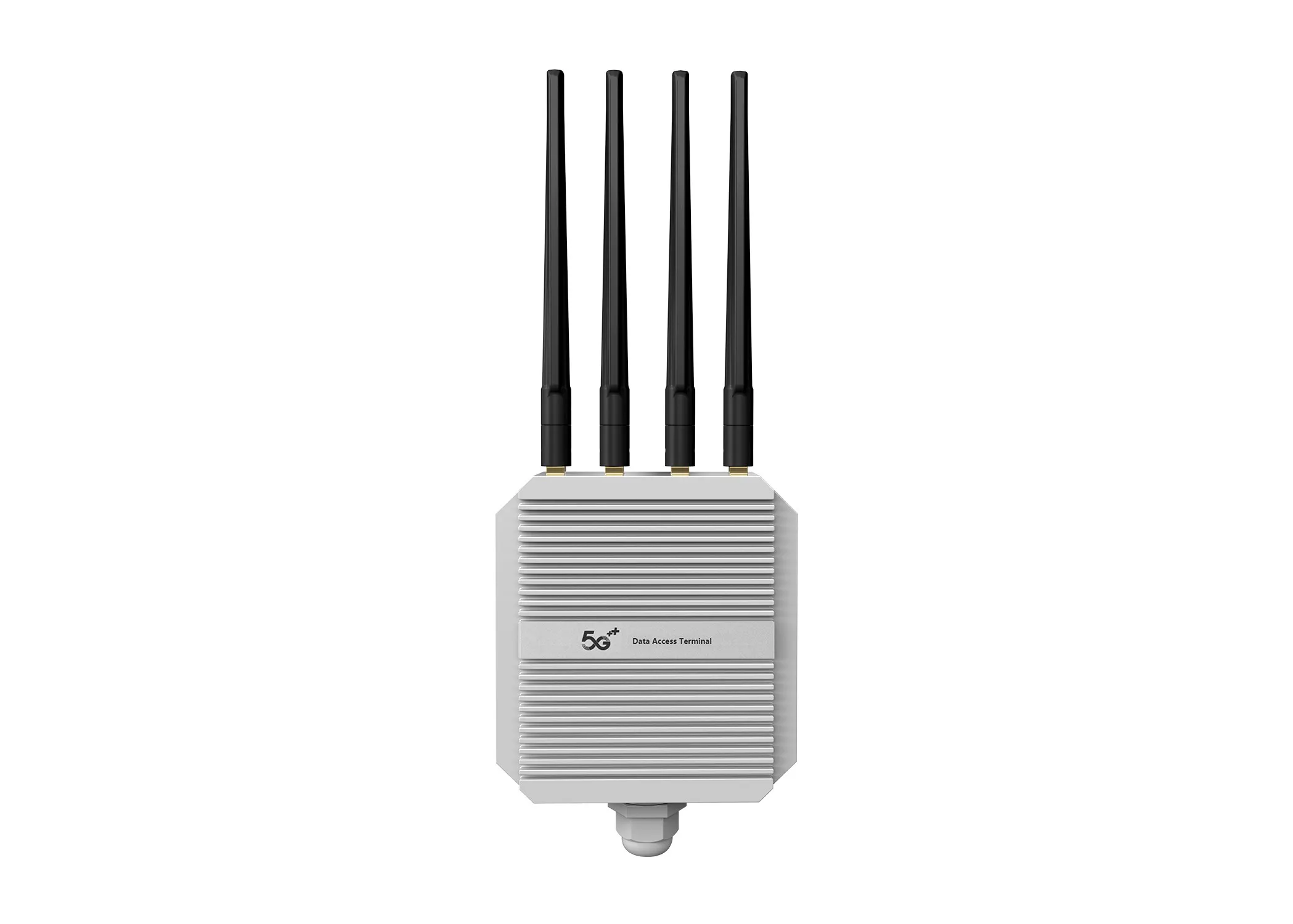

Equipped with 4 external high-gain antenna for 5G/4G signal enhancement.
Includes dual nano-SIM card slots for flexible connectivity.
Provides a 2.5G PoE Ethernet port for simplified power and data transmission.
Low power consumption under 24W with 48V PoE support.
| Model | X75 | |
| CPU | Qualcomm Snapdragon X75 | |
| 5G NR | 3GPP Release 16 NSA/SA operation,Sub-6 GHz | |
| 5G/4G Data Rate | 5G SA Sub-6： DL: 7.01 Gbps; UL: 1.25 Gbps 5G NSA Sub-6： DL: 5.47 Gbps; UL: 730 Mbps LTE：DL: 2 Gbps; UL: 211 Mbps WCDMA：DL: 42 Mbps; UL: 5.76 Mbps | |
| 5G Frequency Bands | 5G NR NSA / SA Sub-6: n1/2/3/5/7/8/12/13/14/18/20/25/26/29/30/34/38/39/40/41/46/53/66/67/68/70/71/75/76/77/78/79/90/91/91/92/93/94 | |
| 4G Frequency | Downlink Cat 19/ Uplink Cat 18 LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/70/71/75/76 LTE TDD: B34/38/39/40/41/48/46/53 WCDMA: B1/2/3/4/5/6/8/9/19 | |
| Interface | 1×1000M/2500Mbps LAN | |
| 1 Reset Button | ||
| 2 SIM card slot | ||
| LED Indicator | Link power,RF Signal,SIM Signal.SYS Signal | |
| Power Consumption | <24W(POE 48V/1A) | |
| Environment | Operating Temperature:-20℃～+50℃ | |
| Storage Temperature:-40℃～+70℃ | ||
| Humidity: 5%～95%(Non condensation) | ||
