Product Overview
5 GHz 13 dBi dual-polarized omnidirectional antenna
Designed for outdoor WLAN systems in the 5.1–5.8 GHz frequency range
Compatibility and Applications
Supports 1x2 and 2x2 MIMO AP/routers
Suitable for IEEE 802.11a/n applications
Ideal for WiMax, WISP, and WiFi communications
Applications include hotels, industrial sites, municipal networks, and MTU/MDU installations
Electrical Specifications
Frequency range: 5150–5850 MHz
Gain: 13 dBi
Horizontal beamwidth: 360°
Vertical beamwidth: 6°
Vertical beam electrical tilt: 2°
Polarization: H+V (dual-polarized)
VSWR: ≤1.5
Mechanical Specifications
Input impedance: 50 Ω

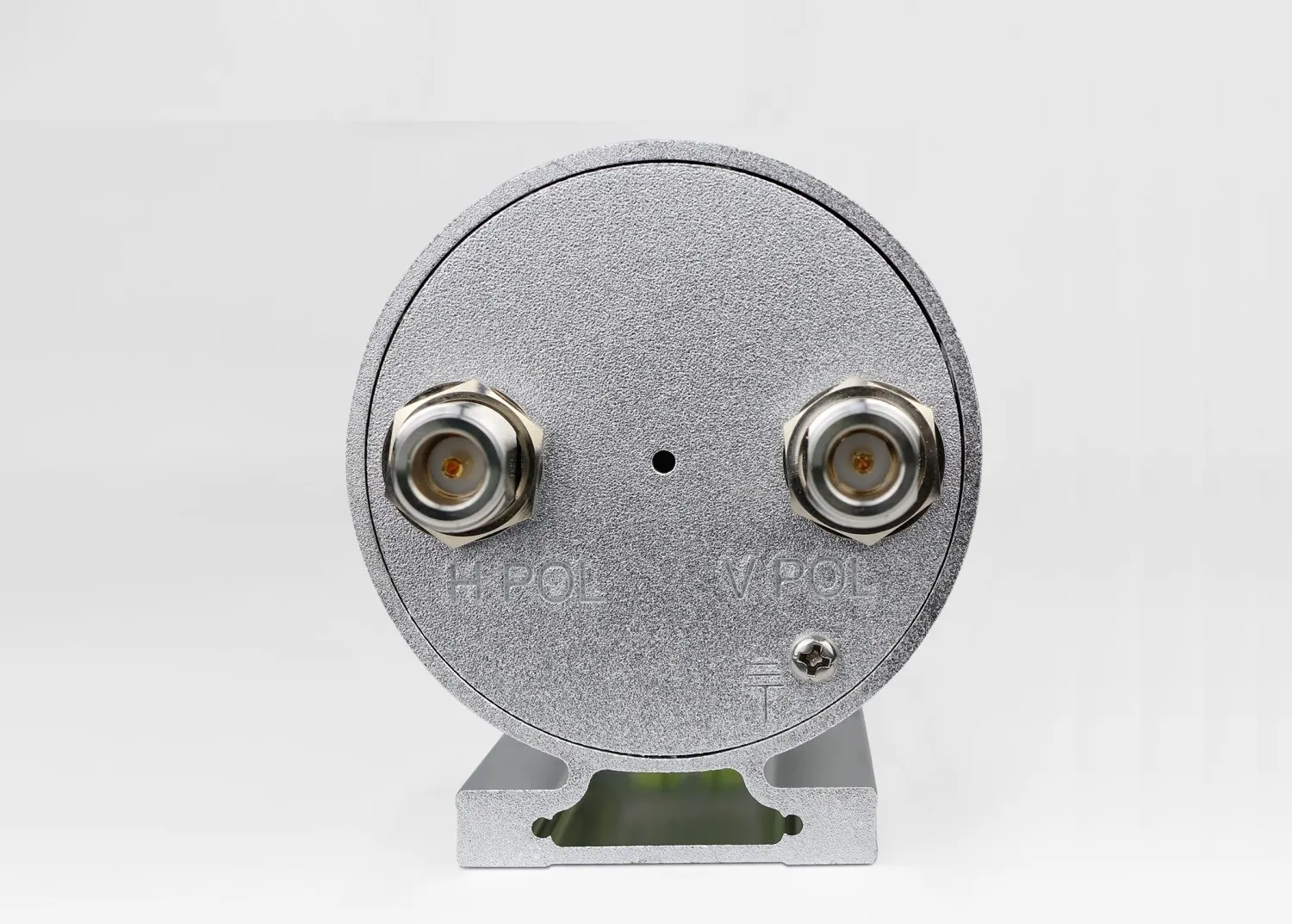

Connector type: 2 x N-K
Maximum input power: 100W
Lightning protection: DC ground

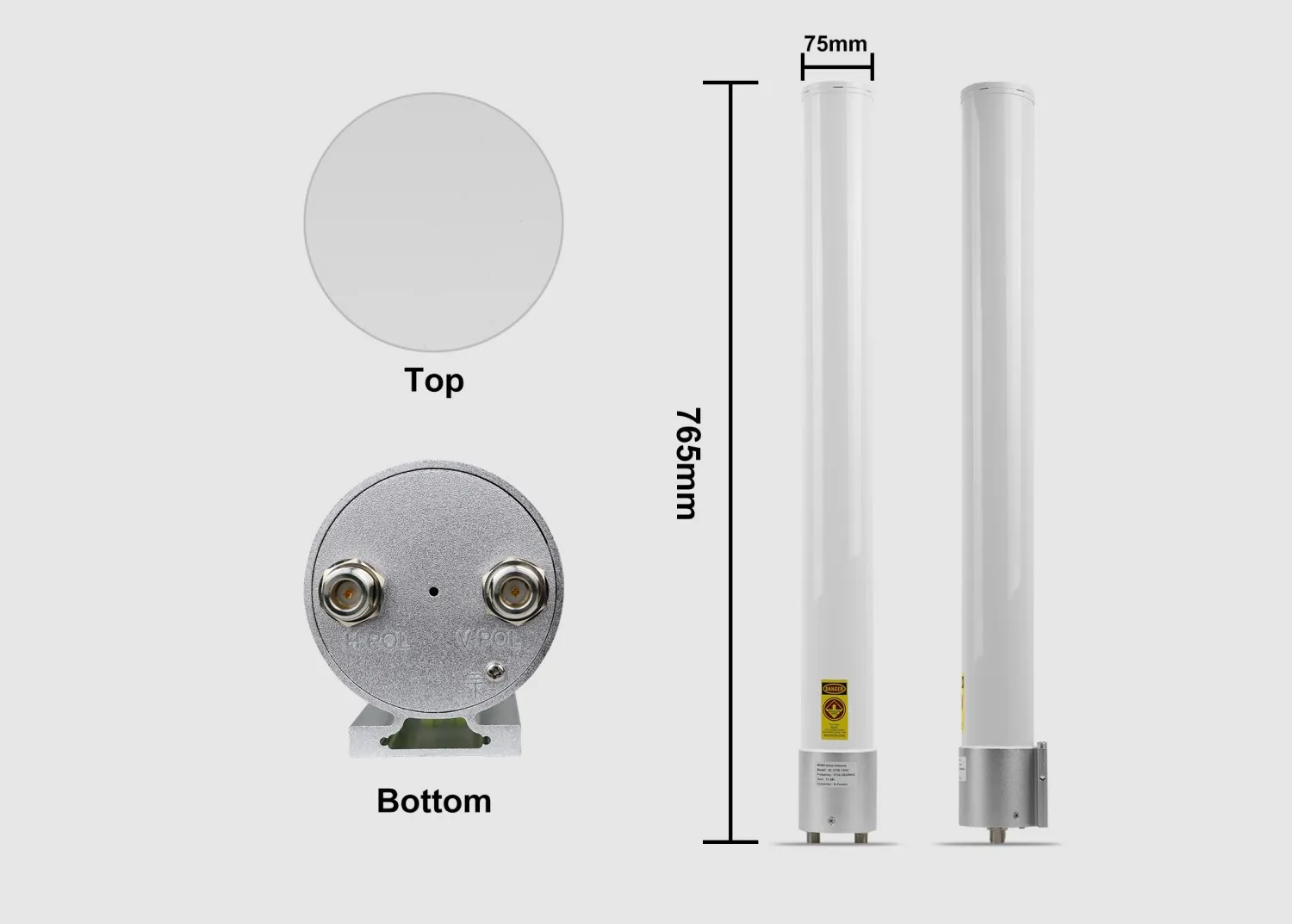

Dimensions: Φ75 x 765 mm
Weight: ≈2 kg
Operating temperature: -40°C to +60°C
Wind speed survivability: 210 km/h
Included Accessories
Antenna
Clamp
Screws (2 pcs)
Stainless steel clamps (2 pcs)
| Product Parameters | |
| Model | AN-5158 |
| Frequency range | 5150-5850 MHz |
| Gain | 13 dBi |
| Horizontal beamwidth | 360° |
| Vertical beamwidth | 6° |
| Vertical plane beam electric tilt angle | 2° |
| Polarization mode | H+V |
| Polarization mode | ≤1.5 |
| Mechanical properties | |
| Input impedance | 50Ω |
| Interface form | 2 x N-K |
| Maximum power | 100W |
| Lightning protection | DC grounding |
| Size | Φ75x765mm |
| Weight | ≈2kg |
| Operating Temperature | -40℃~+60℃ |
| Work speed | -40℃~+60℃ |
