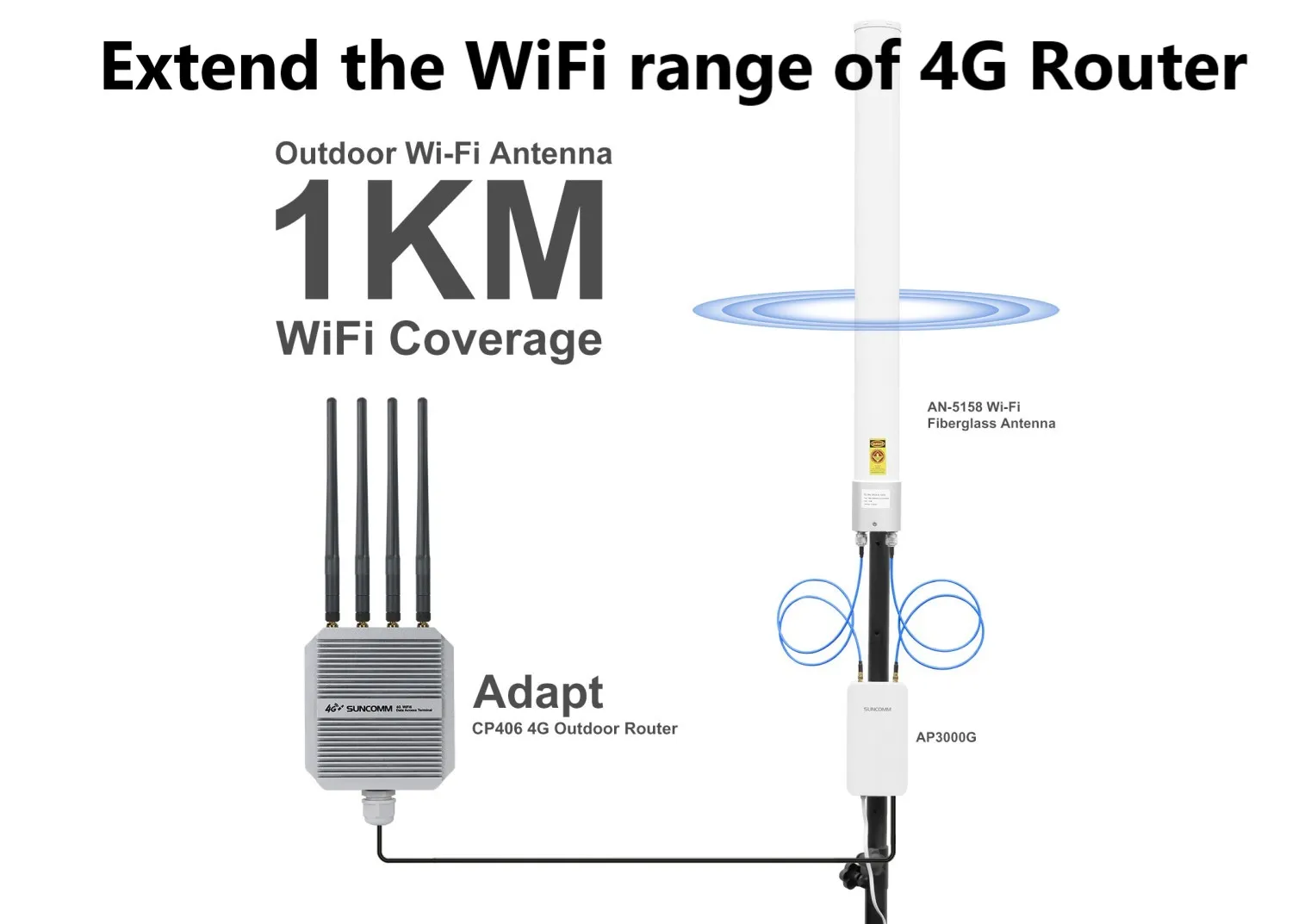

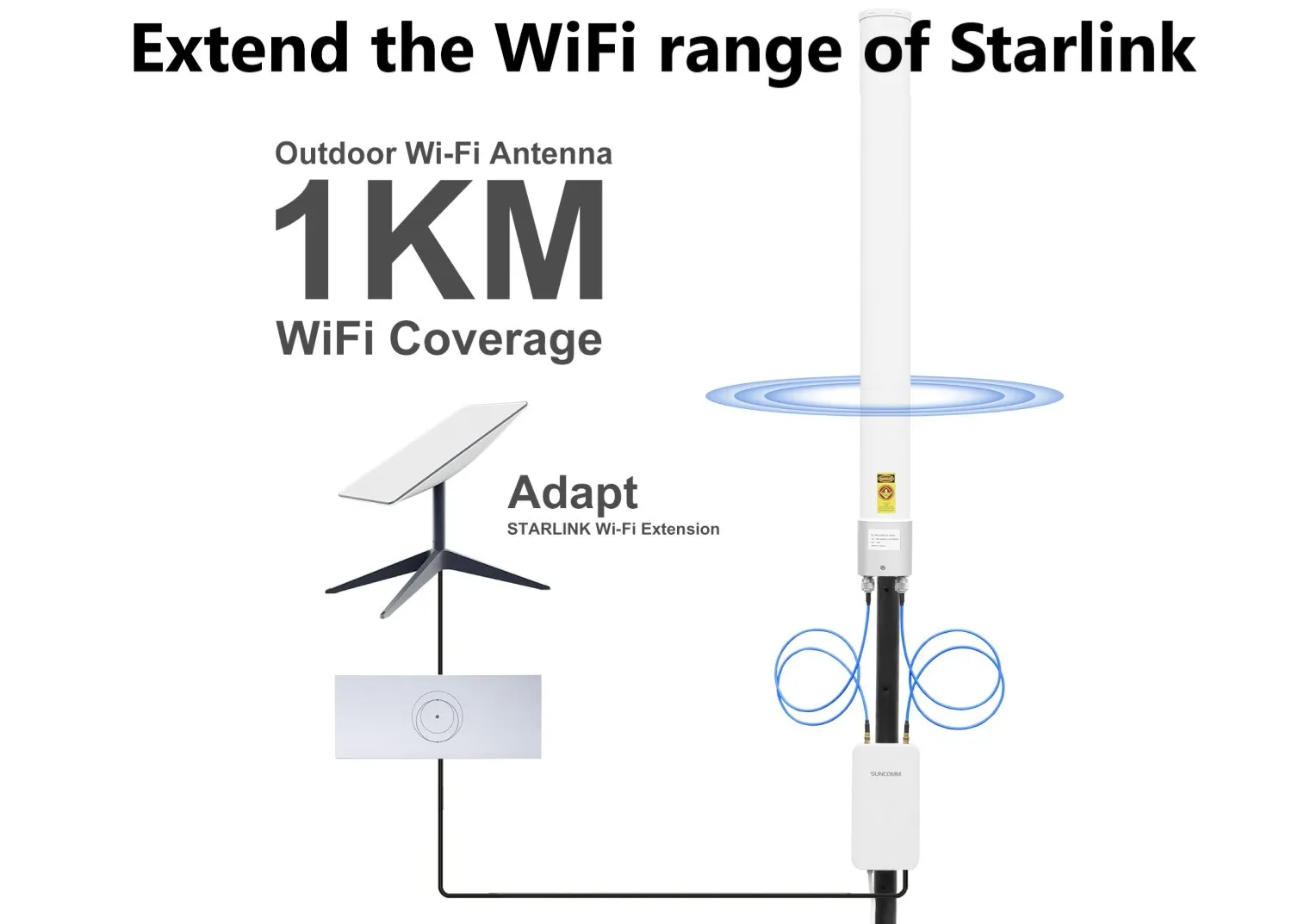

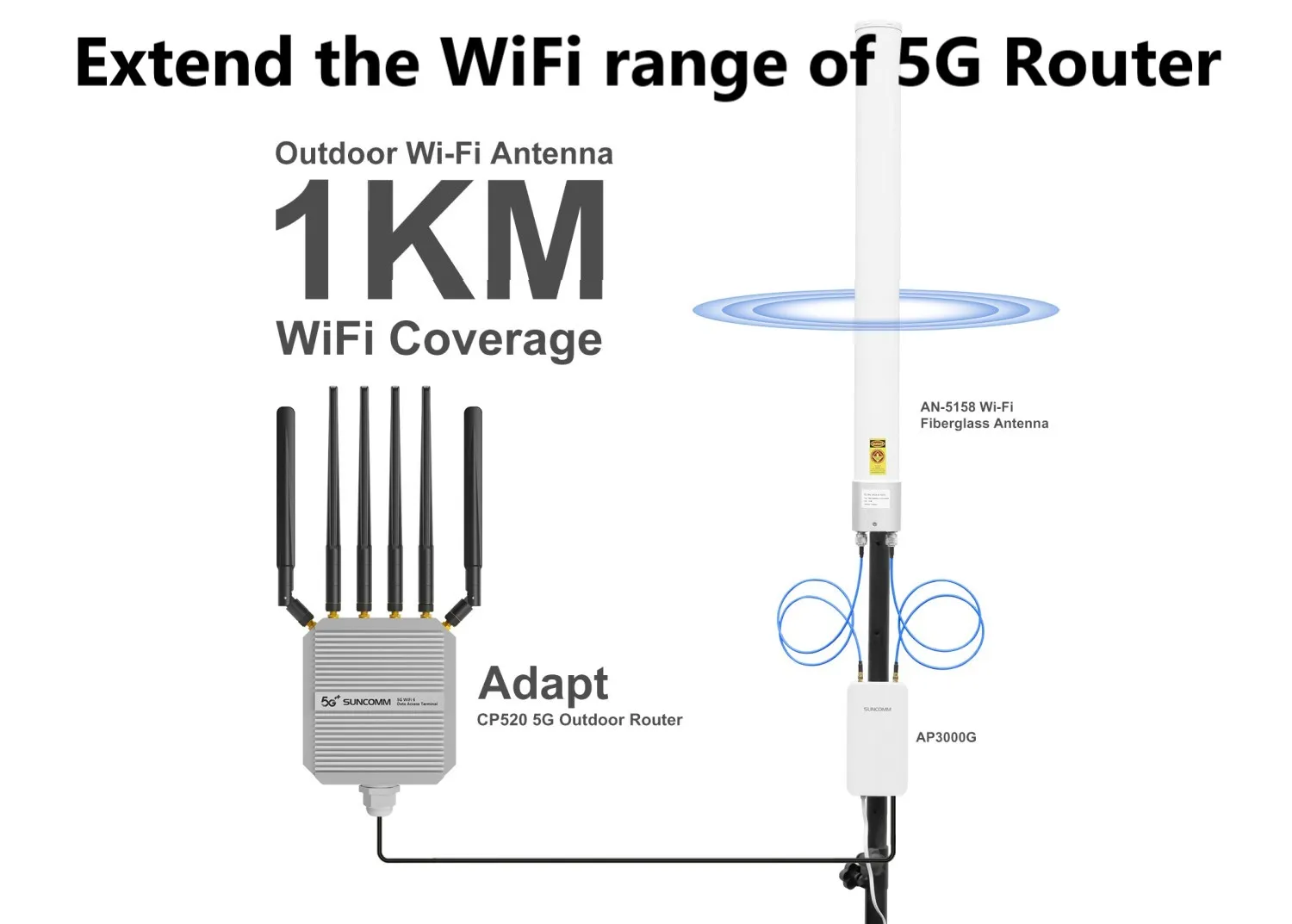

Support Vertical polarization and Horizontal polarization .Designed for long-range wireless coverage, this system integrates high-performance components to deliver strong and stable Wi-Fi signals even in complex environments.
High-Gain Antenna – Extends signal coverage up to 1km
Low-Loss RF Cable – Maximizes signal strength with minimal loss
WiFi 6 AX3000 High-Power Access Point – Supports up to 128 concurrent users, providing fast and stable connectivity
Designed for large-area coverage, this device is easy to install and offers reliable performance.
| Product Parameters | |
| Model | AN-5158 |
| Frequency range | 5150-5850 MHz |
| Gain | 13 dBi |
| Horizontal beamwidth | 360° |
| Vertical beamwidth | 6° |
| Vertical plane beam electric tilt angle | 2° |
| Polarization mode | H+V |
| Polarization mode | ≤1.5 |
| Mechanical properties | |
| Input impedance | 50Ω |
| Interface form | 2 x N-K |
| Maximum power | 100W |
| Lightning protection | DC grounding |
| Size | Φ75x765mm |
| Weight | ≈2kg |
| Operating Temperature | -40℃~+60℃ |
| Work speed | -40℃~+60℃ |
