Operates across 698–960MHz and 1710–3800MHz frequency ranges, supporting dual-band coverage.
262MHz bandwidth for low band and 2090MHz bandwidth for high band ensure stable and efficient signal transmission.
High antenna gain: 9–16dBi (low band) and 15–22dBi (high band) delivers enhanced signal strength and reach.
Narrow beamwidth design: 16° horizontal and 12° vertical for precise coverage.
Front-to-back ratio ≥25dB reduces interference and improves link quality.
VSWR ≤2.0 ensures low signal reflection and higher transmission efficiency.
Maximum power handling capacity up to 100W.
Standard 50Ω impedance ensures compatibility with most RF systems.
Supports vertical or horizontal polarization.
Equipped with N-female connector, customization available.

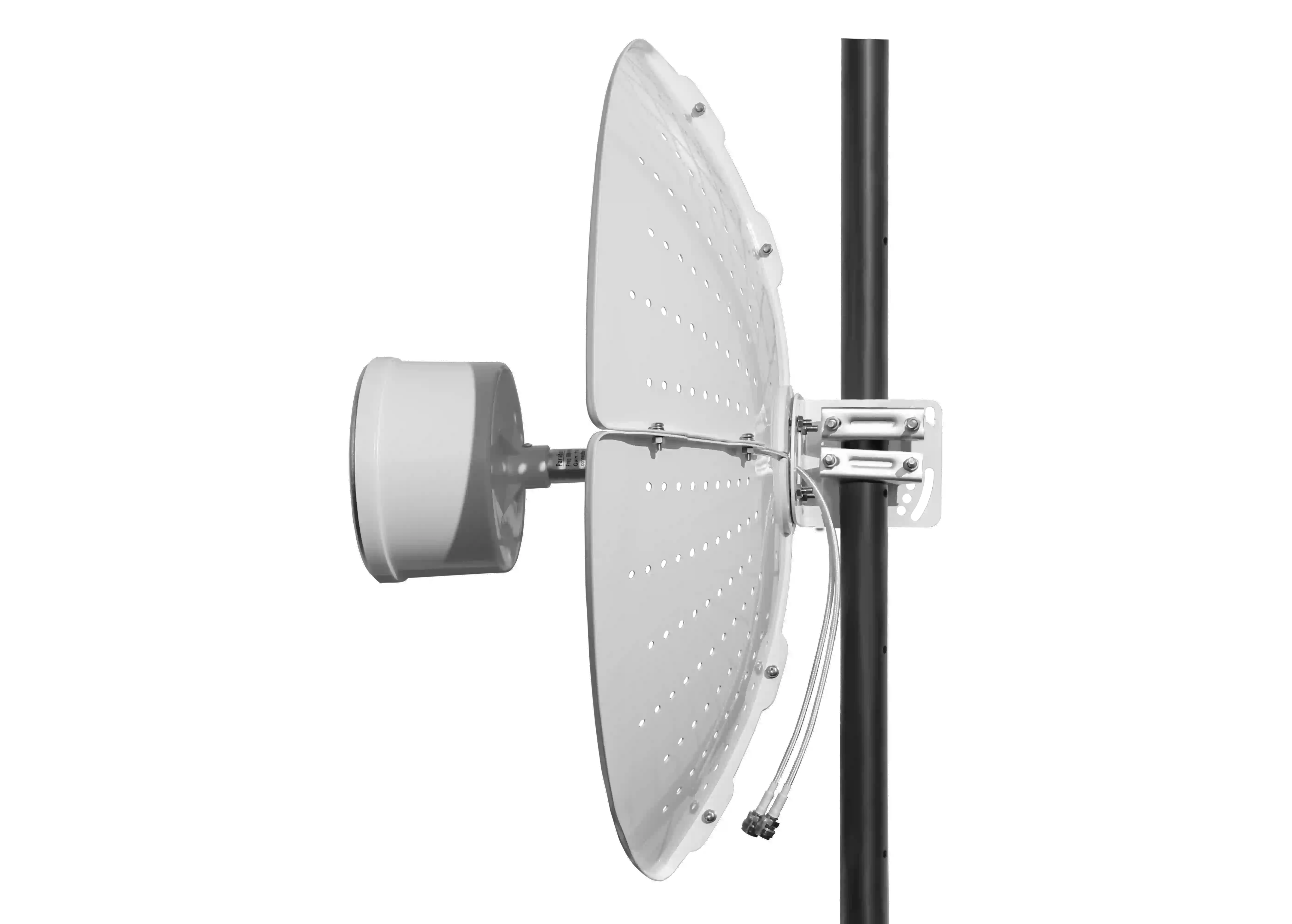

Antenna dimension 0.6m diameter, lightweight 4kg design with aluminum alloy material for durability.
Withstands wind speeds up to 60m/s, ensuring reliability in harsh outdoor environments.
ELECTRICAL | |
Model | AN-Q60 |
Frequency Range | 698-960-MHz / 1710-4200-MHz |
Bandwidth | 262-MHz / 2090-MHz |
Gain | 9-16-dBi / 15-22-dBi |
Beamwidth | H：16°E：12° |
F/B Ratio | 25-dB |
VSWR | ≤2.0 |
Polarization | Vertical or Horizontal |
Max power | 100 -W |
Nominal Impedance | 50 -Ω |
MECHANICAL | |
Connector | N female or customized |
Antenna Dimension | 0.6-M |
Weight | 4-Kg |
Material | Aluminum Alloy |
Rated Wind Velocity | 60-m/s |
Wide Frequency Range: Covers 698-960 MHz / 1710–4200 MHz (4G/5G bands) with 262 MHz / 2090 MHz bandwidth.
High Gain & Precision: 22 dBi gain and narrow beamwidth for targeted, interference-free signals.

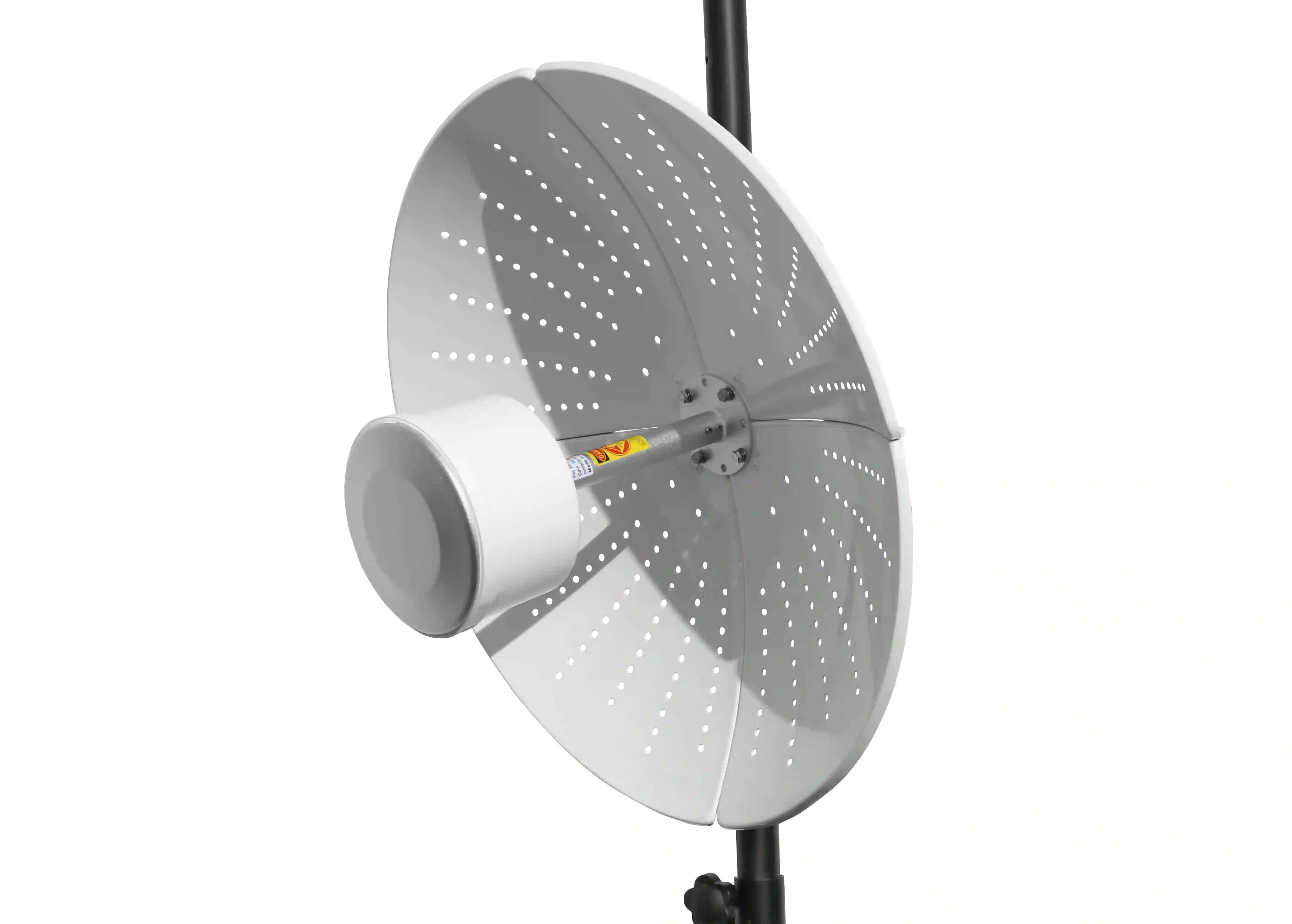

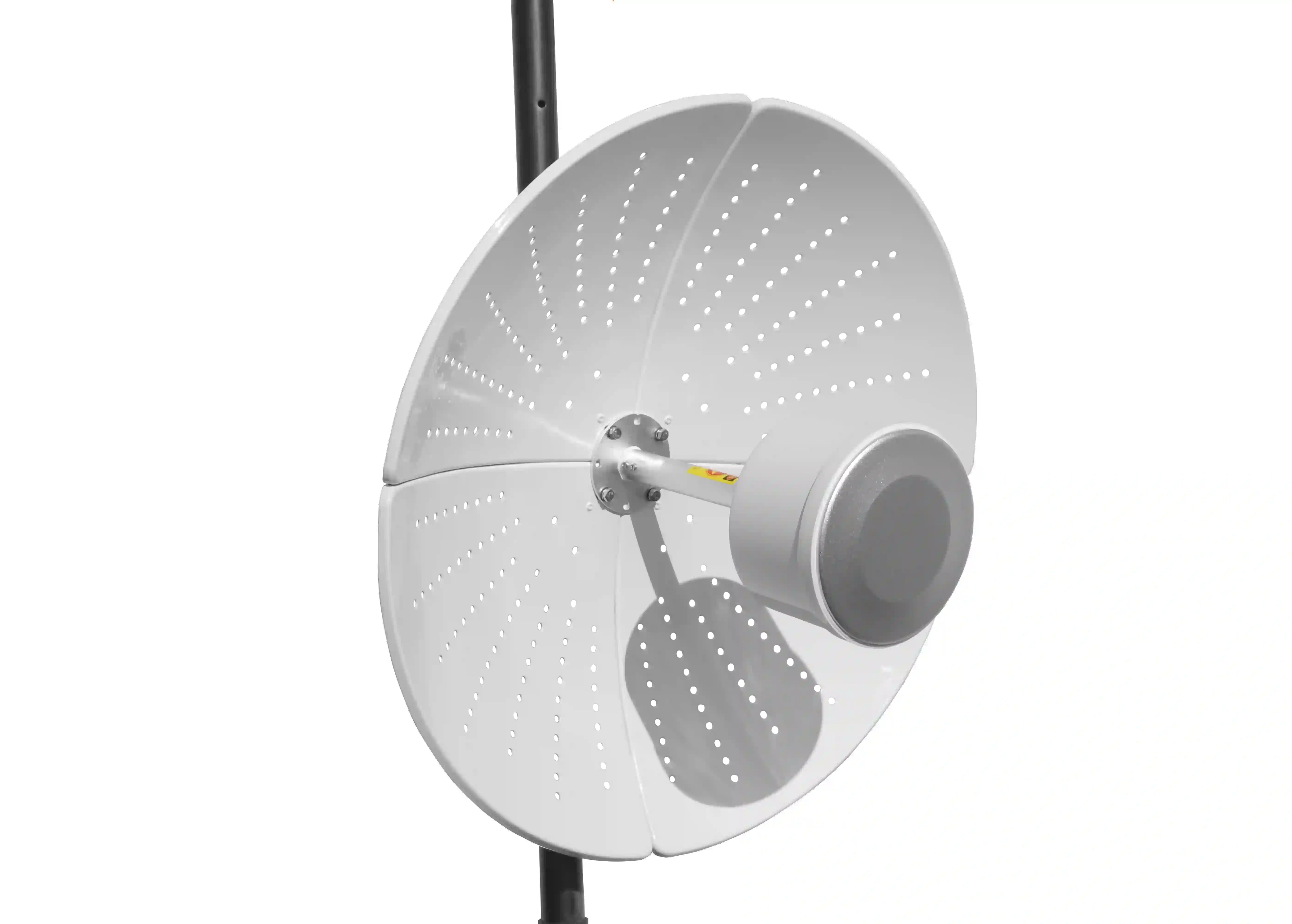

Durable Construction: Aluminum alloy reflector with through-hole design reduces wind resistance (60 m/s rated).
Low Signal Loss: VSWR ≤2.0 and 50Ω impedance ensure efficient power transfer.
Easy Deployment: Compact 0.6m diameter and 4 kg weight for easy installation.
Versatile Polarization: Supports vertical/horizontal polarization for flexible alignment.
High Power Handling: 100W max power for robust performance in demanding environments.
