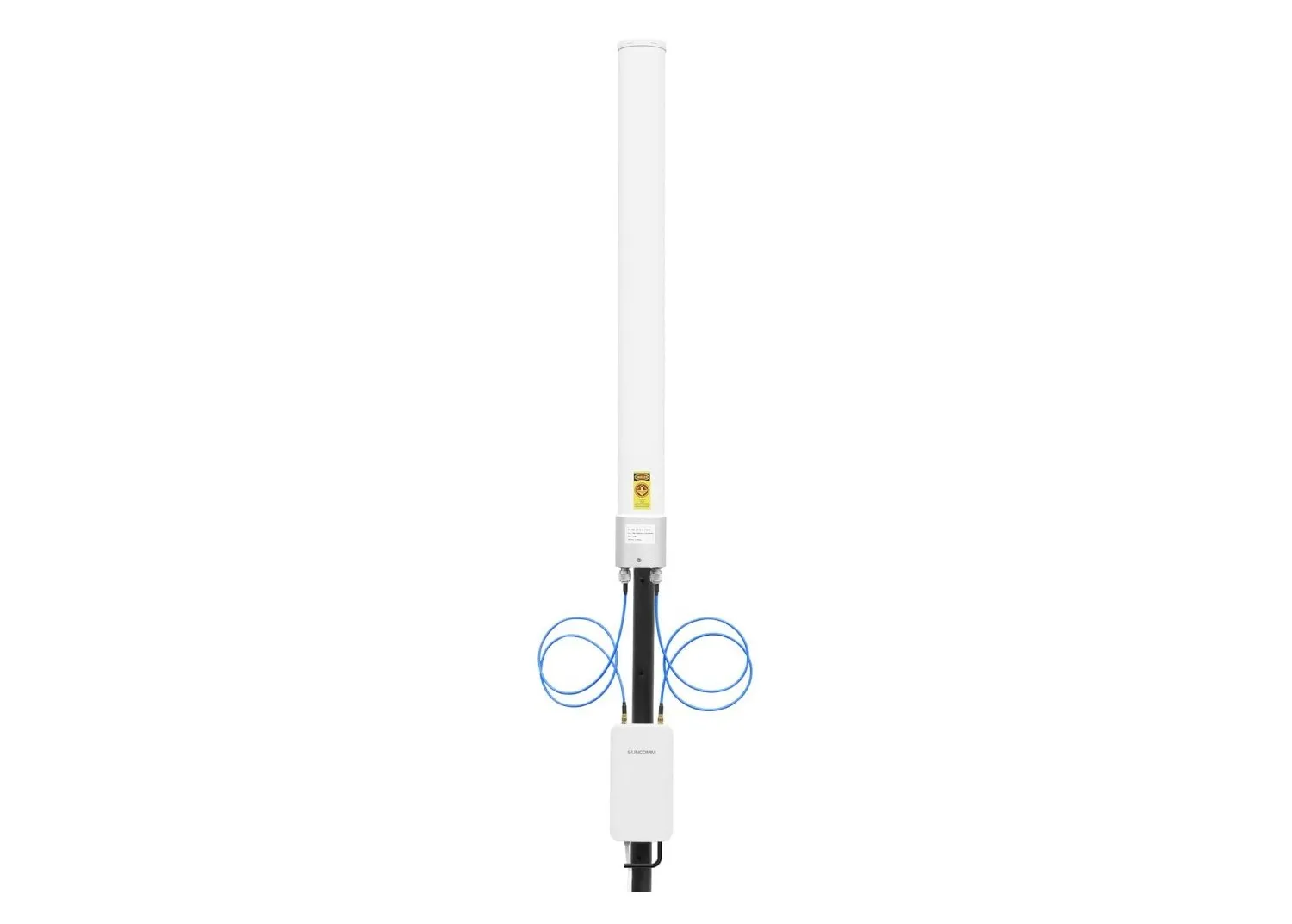

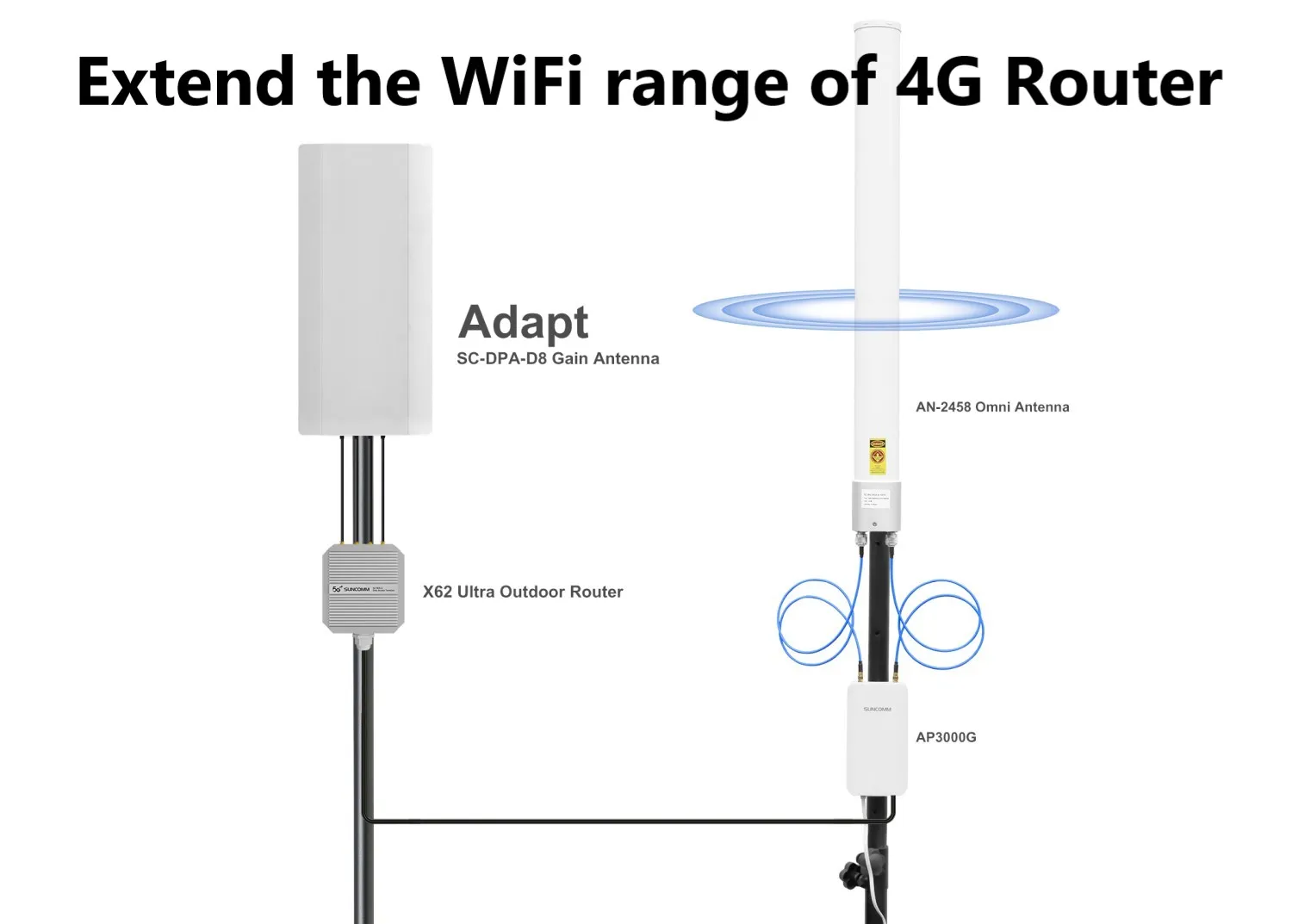

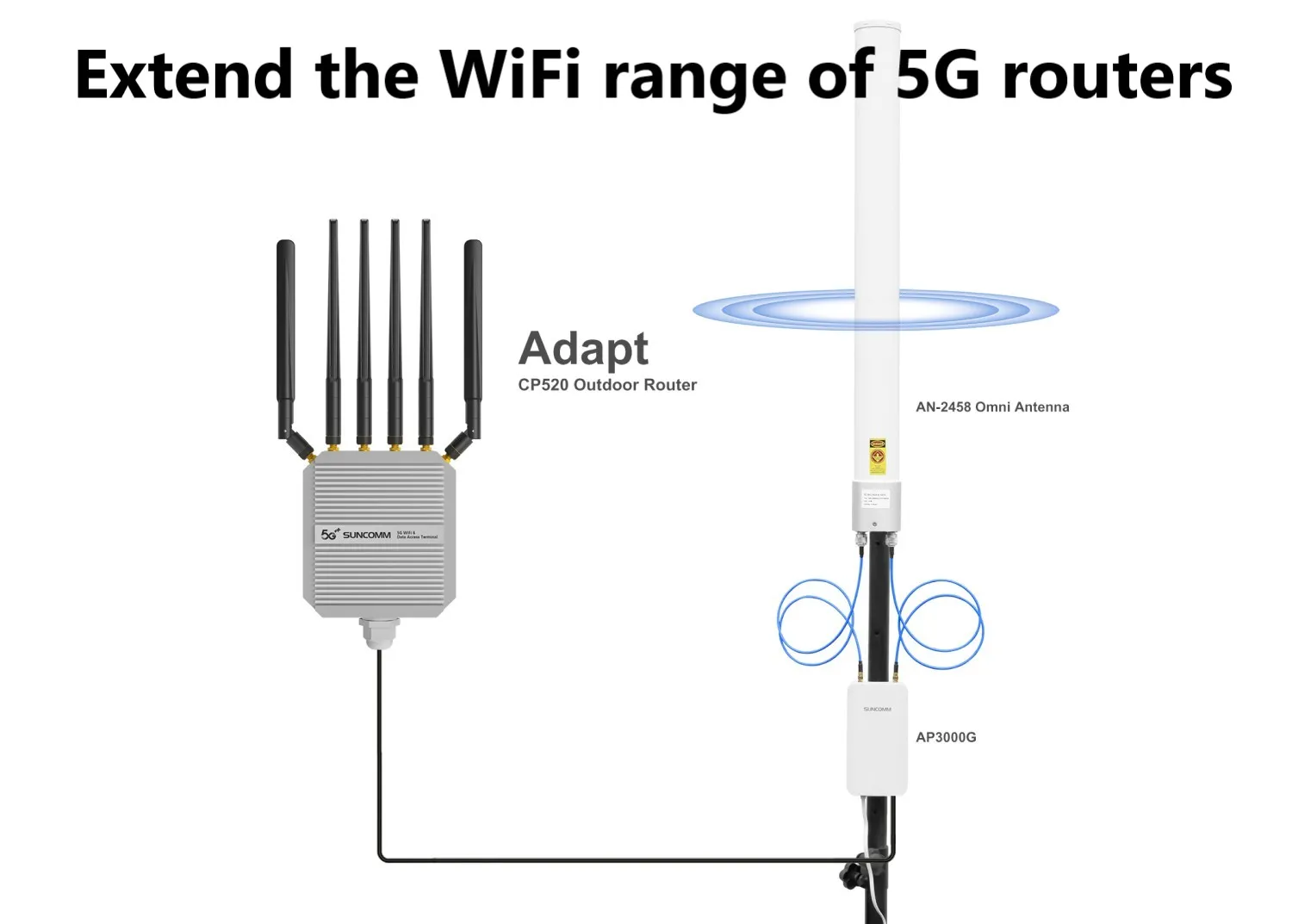

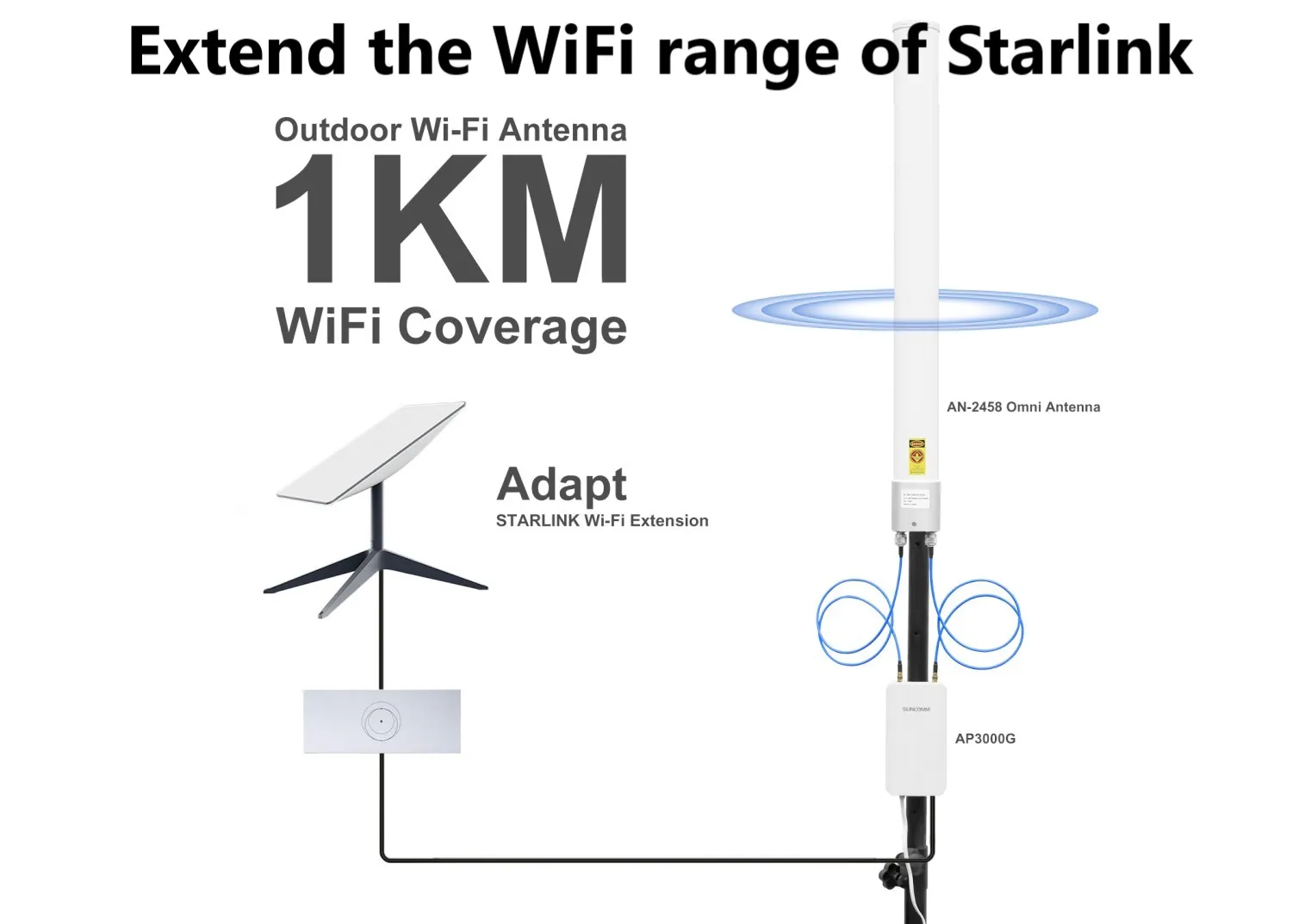

Support 2.4GHz/5GHz wifi band,designed for long-range wireless coverage, this system integrates high-performance components to deliver strong and stable Wi-Fi signals even in complex environments.
High-Gain Antenna – Extends signal coverage up to 1km
Low-Loss RF Cable – Maximizes signal strength with minimal loss
WiFi 6 AX3000 High-Power Access Point – Supports up to 128 concurrent users, providing fast and stable connectivity
---Designed for large-area coverage, this device is easy to install and offers reliable performance.
| Product Parameters | |
| Model | AN-2458 |
| Frequency range | 2400-2500Mhz & 5150-5850MHz |
| Gain | 8/10 dBi |
| Horizontal beamwidth | 360° |
| Vertical beamwidth | 10±5° |
| Polarization mode | V |
| Polarization mode | ≤1.8 |
| Mechanical properties | |
| Input impedance | 50Ω |
| Interface form | 2 x N-K |
| Maximum power | 100W |
| Lightning protection | DC grounding |
| Size | Φ75x850mm |
| Weight | ≈2kg |
| Operating Temperature | -40℃~+60℃ |
| Work speed | 210km/h |
